Shenzhen ShiHan Technology Co., Ltd. >> Full Color Indoor Outdoor LED Display with Video Display Function

Full Color Indoor Outdoor LED Display with Video Display Function

Name: Full Color Indoor Outdoor LED Display with Video Display Function
Brand: China-Manufacturer-Directory.com
SKU: 762837535
Availability: InStock
Rating: 4.5 (46 reviews)

Supplier:	Shenzhen ShiHan Technology Co., Ltd.
Price:	US $ 700-900/Piece
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	P2.5/P3/P4/P5/P6/P6.67/P8/P10/P16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Dimension:	576mm*576mm
Cabinet Resolution:	96DOT*96DOT
Cabinet Weight:	10kg/PCS
Cabinet Material:	Die-Casting Aluminum
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	6mm
Pixel Configuration:	1R,1G,1B
Pixel Density:	27,777 dots / m²
Scanning Mode:	1/16 Scan
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Shopping Guide
Certification:	FCC

Product Description

Indoor Outdoor Full Color LED Display with Video Display Function

Specification

Module	NO.	Item	Parameter
	1	Module Model	SH-P6(Indoor)
	2	Pixel pitch	6mm
	3	Module dimension	192mm*192mm
	4	Module resolution	32*32dots
	5	LED constitution	SMD 3in1(3528)
	6	Pixel configuration	1R1G1B

Cabinet	1	Dimension	576mm576mm80mm
	2	Physical resolution	96*96dots
	3	Module quantity	9PCS
	4	Weight	10kg/PCS
	5	Material	Die-casting Aluminum
	6	Driving method	Constant current+1/16 scan
	7	Brightness	≥1500nits
	8	Max power consumption	400W/SQM
	9	Average consumption	200W/SQM
	10	Refresh frequency	>1000HZ
	11	Gray level	1021~16384
	12	Input Voltage	AC100-120V AC200-240V
	13	Power supply	5V/40A 1 PCS
	14	Viewing angle	120°
	15	Working environment	Temperature: -20°C~ 60°C
	15	Working environment	Humidity:10%~90%RH
	16	Control system	Nova Asynchronous Control system
	17	Input signal	AV S-VIDEO VGA DVI HDMI YPBPR SDI DP
	18	Display function	Videos
	19	Certificate	CE Certification

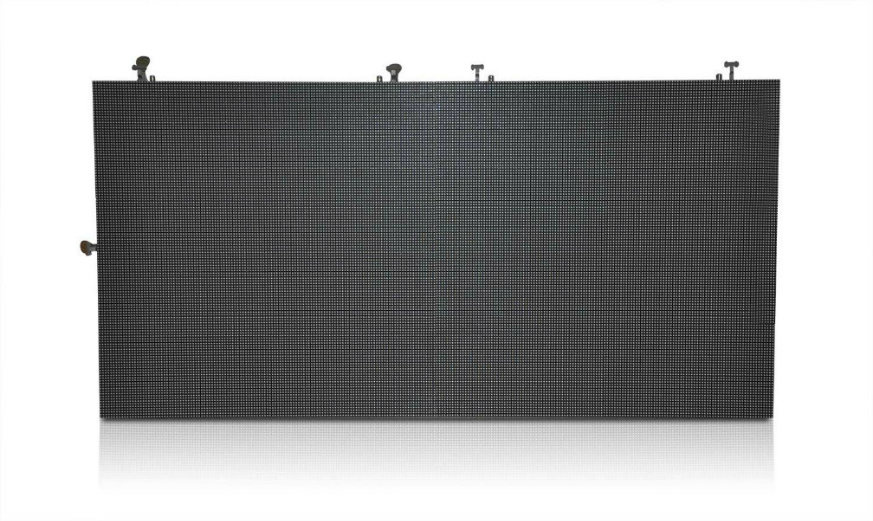

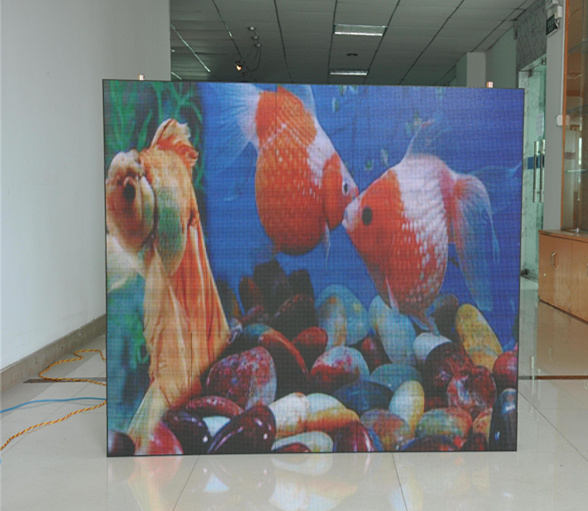

Product Picture

Installation

Functions

1.Cabinets are made of die-casting aluminium,can be spliced with no crack.
2.Tools isn't needed for installation.
3.The SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.
5.Suitable for Outdoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.

Trade Terms

1. Package: Anti-shaking wooden cabinet, Carton package.
2. Shipping freight are quoted according to your requests.
3. Payment: T,T / West Union.
4. Shipping port: Shenzhen, Mainland China.
5.Delivery time:3-15 working days.
6.Warranty time:2 years,lifelong maintaining.

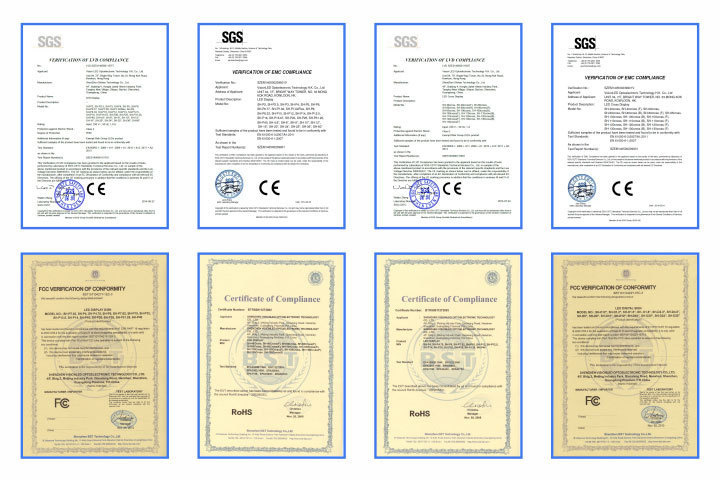

Certification
