Shenzhen Retop LED Display Co., Ltd. >> Full Color Outdoor Fixed LED Display

Full Color Outdoor Fixed LED Display

Name: Full Color Outdoor Fixed LED Display
Brand: china-manufacturer-directory.com
SKU: 695163362
Availability: InStock
Rating: 4.3 (66 reviews)

Supplier:	Shenzhen Retop LED Display Co., Ltd.
Price:	US $ 1000/Square Meter
Min Order:	10/Square Meter
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	PH 10mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fixed LED Display:	Outdoor LED Display
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	10mm
Display Function:	Image & Text Display
Scanning Mode:	1/4 Scan
Certification:	ETL
Pixel Density:	10000 dot / m²
Application:	Sports Arena

Product Description

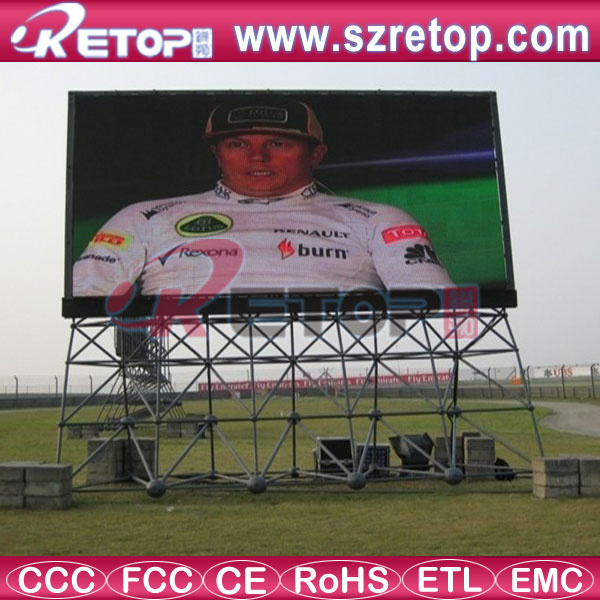

1. Attached pictures show our PH 10mm full color fixed led display;

2. The sizes for our full color fixed led display can be PH 8mm, PH 10mm, PH 12.5mm, etc;

3. The brightness of our full color fixed led display will be over 5000 cd per sqm;

4. It is IP65 from the front side while IP43 from the rear side;

5. The life-span of our full color fixed led display will be over 100, 000 hours provided right operation.

Resolution

10 mm

LAMP

LED Type

SMD 3-in-1

Wave length

R: 620 nm

G: 524 nm

B: 468 nm

BOARD

Pixel configuration

1R1G1B

LED driving method

1/3dynamic scan

Pixels

(W*H)

Pixel pitch

Led board size

320

(W*H*D)

MODULE

Led boards

(W*H)

Pixels

128

(W*H)

Module area

1.23

m 2

Module size

1280

960

210

(W*H*D)

Net weight

(aluminum)

(ferrum)

Power

AC220/110 ± 10%, 47~63Hz

Water proof

Front IP65/ Rear IP43

Serviceability

Rear service

DISPLAY

Max. power consumption

≤

980

W/m 2

≤

780

W/m 2

≤

860

W/m 2

Avg. power consumption

≤

343

W/m 2

≤

273

W/m 2

≤

301

W/m 2

Max. current (208V 60Hz)

≤

5.24

A/m 2

≤

4.17

A/m 2

≤

4.59

A/m 2

Hor. viewing angle(min 50% brightness)

140°

Vert. viewing angle(min 50% brightness)

140°

Brightness

≥5000 cd/m 2

Pixel density

10000

/m 2

Power factor

>0.9

Contrast ratio

6000:1

Operating temperature

-20ºC to +50ºC

Operating humidity

20% to 90%

Lifetime (50% brightness)

100,000 hours

Processing

16 bit

Colors

281 trillion

Refresh rate

≥2000 Hz

Frame rate

60 fps

Brightness level

Manual 100 levels,automatically 16 levels.

Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!

Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.

Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the

Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.

Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
