Full Color P3mm High Precision Indoor Rental LED Display

Product Specifications

Prod Model:	3mm, 4mm, 5mm, 6mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP43
Certification:	CCC
Pixel Pitch:	3mm
Pixel Configuration:	SMD2121
Pixel Density:	111110 Pixels/Sqm
System Operating Platform:	Win XP, Win 7, Win 8, Win 8.1, Win10

Product Description

Full Color P3mm High Precision Indoor rental LED display

Application:

BST's Full Color rental LED displaycan widely used in Art Exhibition, TV show, Tradeshow, Car show, theater, shopping mall, press conference and other events.

Key Feature

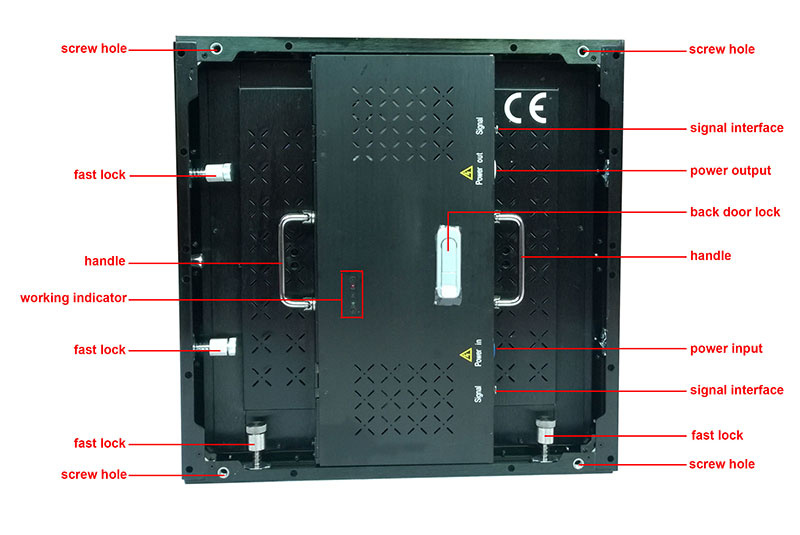

1. Standard Cabinet design and component design adopt industry-standard connector. reduces maintenance time and costs.

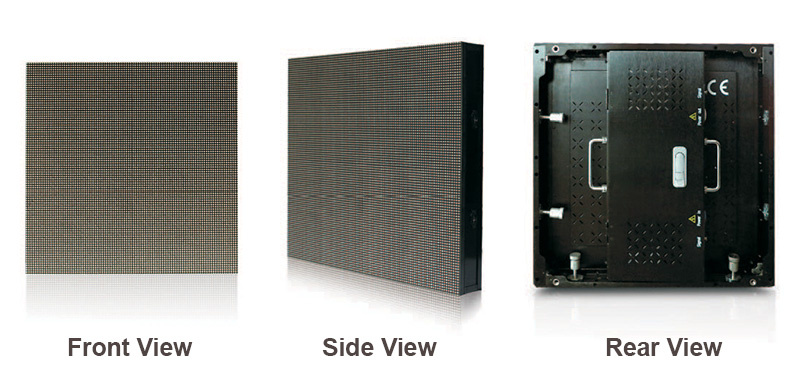

2.  Lightweight, Ultra thin and Seamless splicing
     thickness is only 65mm,  very easy to transport, stock and install.  Seamless splicing advance video perfermance.

3.  Fanless design, silent operation low heat generated
     We adopt low voltage input, low heat generated and fanless design, advance LED Screens reliablity.

4.  Wide Viewing angles, High contrast ratio
      H160 degree, V100 degree wide viewing angles, black body LED chip






Model	BST-P3-I
Pixel Pitch	3mm
Unit Size	576mmx576mm
LED Type	SMD 2121/black body
Pixel / Unit	192*192
Unit Weight	8kg
Viewing Angle	H160 degree V100 degree
Application	Storage-40~60° C,   Working-20~50° C
Protection Level	For indoor use only
Power Consumption	160W/panel Max
	80W/Panel Ave.
Driving	1/16 Scan
Frame Refresh	≥ 60Hz
Refresh Rate	600Hz~2000Hz
Processing	16bit
Max Brightness	1,200nits
Power Supply	AC90-240V, 50~60Hz
MTBF	≥ 1, 000 Hours
Life Span	≥ 50, 000 Hours
Pixel Failure	< 0.0003
