Product Specifications
| Prod Model: |
AM-2802 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Digital Imaging System |
| Classification: |
Imaging Diagnostic Equipment |
Product Description

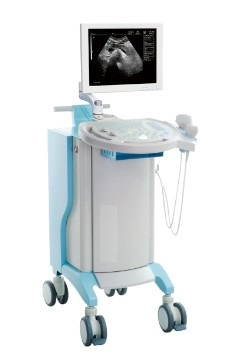

Full Digital B Mode Ultrasonic Diagnostic Instruments Am-2802Parameter:
Adopt ARM7 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
15" high resolution LCD monitor.
Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
Double probe sockets, automatically identify the probe, support several optional probes.
Body mark: 64 body marks with probe position.
Display mode: B, 2B, 4B, B/M, M, total 5 kinds.
10 grades Image depth adjustment, maximum display depth is 236mm.
Gain range: 0~127dB.
Dynamic range: 27~90dB.
Gray: 256.
Intelligent TGC control: 8 segments.
Frame frequency: 30 frames/second.
Pseudo-color: 8 kinds(incl. B/W).
Image storage: Main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss of image when power off.
Cine loop: 256 frame.
Puncture guiding function(2 guiding lines, angle and position adjustable).
Equipped with lithotripsy software, realize real-time positioning measurement.
General measurement: Distance, perimeter, area, volume, angle, length and area stenosis ratio measurement.
Obstetric measurement and analysis: 15 kinds of obstetric tables, several GA measurement, amniotic fluid index, fetal growth curve and OB report.
Gynecology measurement and analysis: Gynecology general measurement and gynecology report.
Urology measurement and analysis: Residual urine volume, prostate volume, and urology report.
Two USB ports support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports, making the output of diagnosis more convenient and simple.
Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.
Power: AC110/230V -15%~+10%(self-adaptation supply voltage ) 60/50Hz± 1Hz.
Net weight: 29kg.
Main unit size: 725x445x(1200-1400)mm(length x width x height); Note: Height of liquid crystal holder is adjustable.
Standard configuration:
Main unit: 1 pc.
15" high resolution LCD monitor.
Double probe sockets, automatically identify probe.
3.5MHz multi-frequency abdomen convex probe: 1 pc.
Optional configuration:
Probe
6.5MHz multi-frequency trans-vaginal probe
5.0MHz multi-frequency micro-convex probe
7.5MHz multi-frequency high linear probe
Video recorder (P93W-S)
Laser printer(Specified models: HP Color laser Jet CP1515n, HP Color laser Jet CP1525n)
