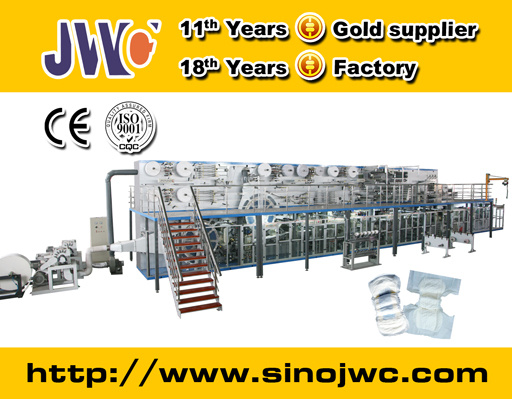

Full Servo Adult Diaper Machine (JWC-LKC-SV)
Product Specifications
Prod Model: |
JWC-LKC-SV Diaper Machine |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Diaper Machine Color: |
to Be Defined |
Finished Product: |
Adult Diaper |
Process: |
Paper Machine |
Usage: |
Adult Diaper Machine |
Type: |
Adult Diaper Machine |
Automatic Grade: |
Automatic |
Computerized: |
Yes |
Certification: |
ISO |
Product Description
Adult Diaper Machine Mechanical driving system: 1.Main machine adopts servo motors driving.
2.Adopted imported convey belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation and good products.
3.The key parts adopt ball cage coupling, can improve the parallelism between upper and bottom cutting rollers, reduce the transmission error, more stable
4.The thickness of inside and outside plate use 50mm, 45 # hardening and tempering.
5. Using high quality HSS, ensure the life of cutter. Customers also can choose M7 material
The key position tool transmission adopts planetary reducer drive, free maintenance, zero error.Adult diaper machine Mechanical Parts:1. Saw mill High-speed Fabric Crusher, crushing capacity 600KGS/hour.
2. Fluff Pulp Drum-type Forming Equipment
3. SAP Application Devices. Controlled by servo motor and quantity can be adjusted on the screen.
4. High-Pressure Absorbent Fan
5. Cotton Core Embossing Roller
6. Cotton Core Short Cutter
7. 3-cores Pressing Roller
8. Transfer Flat Cutter
9. Waistband supplying and cutter
10. Frontal Tape Cutter
11. Leak-proof Embossing Roller
12. End & Side Seal Embossing Roller
13. Side Tape Cutter
14. Edge Forming Cutter
15. Final Forming Cutter
16. 3-Forlding
17. Side Wastage Crushing
18. Safety Protection Door
19. dust collection system
20. Raw materials online lifting system.
Designed speed |
300m/min |
Working speed |
200-250PCS/min (M size) |
Qualified rate |
97% (The rate is compared with qualified products with gross output products within7.5 hours) |
Efficiency |
≥ 85%(The rate is compared real output with principle output within 7.5 hours) |
Installed capacity |
400KW (Including hot melt system) |
practical capacity |
40KW(Including hot melt system) Breaker Capacity: 600A |
Electric power supply |
Three-phase & four-wire 380V/50Hz(Ground wire) |
Electric wire |
3x120mm2+1x50mm2+1x25mm2 |
Lowest barometric pressure |
8 kg/cm2 |
Air compressor |
>0.6Mpa, 1.8m3/min, 22kw(to be reference) |
Gross weight |
102T |
Noise |
<85dB(A) |
Machine size |
(37x9mx5.5)M |
Working space |
(42x13x6)M |
Color |
Silver (According to order) |
Range of products |
XL\L\M\S |
|
|
