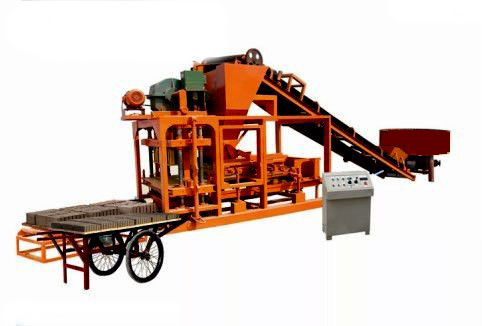

Product Specifications
| Prod Model: |
QTJ4-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Target users: Requires high production output of concrete blocks in different types, sizes, shapes.
2. Applied products: Concrete blocks, solid and hollow blocks, pavers with or without color layer, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocks, etc.
3. Applied fields: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
4. Raw materials: Crushed stones, sand, cement, lime, fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
5. Main features:
5.1. Electrical system consists of PLC control system and touchscreen, with data input and output;
5.2. Hydraulic system: Uses double high-dynamic proprotional valves, which autmoatically adjust the oil flow and pressure;
5.3. Heavy duty machine structure, which is made of high density cast steel, is vibration-proof.
5.4. Four rods guiding system and long guide bushing assure the precise movement between the tamper head and the mould.
5.5. Highly productive moulding device, which consists of 360° Rotating and compulsory feeding of raw materials. Platform vibrating and compression shaping, greatly improves the cycle time.
5.6. The moulds are changeable, and it's able to to produce various kinds of blocks, bricks, interlocks, pavers, and curbstones in different types, sizes, shapes.
Main Technical Specifications:
Product Quantity: 400× 200× 200 4 pieces/mould 4000 PCS/8h
400× 150× 200 5 pieces/mould 5200 PCS/8h
400× 120× 200 6 pieces/mould 6800PCS/8h
Power: 21kw
Overall Size: 3300× 1950× 2450mm
Cycle: 25S
Carriage Size: 850× 470× 35mm
Vibration Frequency: Max. 4000r/m
Electrical source: 380V/50Hz
Total Mass: 5000kg
Dingsheng Industry, specializes in producing brick machine, tile machinery, pipe machine and vacuum-extruder, has a good capability within development and innovation. Our company is a famous enterprise. The quality of the products is under the insurance of PICC, and it enjoys a high fame in the construction materials industry.
With more than twenty years' development, Dingsheng Industry boasts many senior technicians, advanced equipment, a precise quality testing system and a wholesome marketing and service network. Our products have a good market at home and abroad because of excellent quality and high performances, and they are successively exported to Europe, Southeast Asia, Africa and many other countries in the world, highly trusted and applauded by consumers.
