Product Specifications
| Prod Model: |
DFJ-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function Type: |
Paper Converting Machine |
| Application Type: |
for Paper Mill |
| Sheet: |
Multi-Sheet |
| Standard Model: |
1400 1700 1900mm |
| Customed Model: |
Yes. According to Order |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Electric |
| Blade Material: |
HSS |
| Computerized: |
Computerized |
Product Description

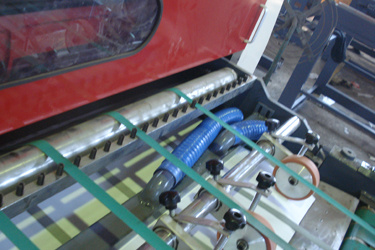

DFJ-1400/1700E machine control system is composed by TRID motion controller from England, EMERSON PLC from America, HITECH touch screen from Taiwan, etc. The automatic control system adopt the international first rate YASKAWA servo motor and driver from Japan, AC transducer from Japan, and all important units adopt famous imports with good quality. It can keep good stabilization along with high cutting speed. Adopt precision bearings and cutting blade from Germany. It has high cutting precision, and long service life. Gently touch screen man - machine interface. Good looking and easy to use. Adopt advisable reverse - bent rack to keep paper on the same level. Unwinding adopt hydraulic pressure loading -unloading system, shaftless stand, and automatic pression control system.
DFJ-1400/1700E is ahead of the similar processing machine in paper manufacturing and printing in China. It will raise your manufacturing efficiency by times, and increase your benefit as the same.
Standard configuration
1. Prismatic adjustment system for paper 1 SET
2. Paper conveying appliance 1 SET
3. Automatic paper trimming and piling system 1 SET
4. Electrical control system 1 SET
5. Motor driving system 1 SET
6. Accessory 1 SET
7. Face cone shaftless stand 2 SET
8. Paper tension control system 1 SET
9. Operation system: LCD man-machine interface 1 SET
10. Main drive system: AC servo motor 1 SET
11. Round Cutter Slitting System 3 SET.
| Reference thickness of paper | 60~600 | GSM |
| Cutting precision | ±0.3/1200 | mm |
| Max.sheetting speed | 300-380 | sheet/min |
| Max.feeding speed | 280 -350 | m/min |
| Cutting length range | 450~1450 | mm |
| Max.roll diameter | 1400 | mm |
| Piling height | 1200 | mm |
| General weigh | 12000 | kg |
| Overall Dimension | 10.6×3.8×2.1 | m |
|
|
|
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, which is grow out from Ruian City Dongfang Machinery Manufacture Co., Ltd. It is founded in 1993, is specialized in producing complete sets of soft packing equipments and has been appointed as one of units Honouring Contracts and Abiding Its Words by the municipal government for fifteen times in succession. In 1997, it was agian awarded titles as Hourning Contracts and Abiding Its Words, Grade Advanced Unit, Star Enterprise and Grade-AAA Credit Unit. Specially, It has been assessed and found to be in conformity with the requirements of ISO9001-2000. And got CE in the year of 2006.
We develop high-new products uninterruptedly by introducing advanced technology, combinging national conditions, depending on scientific and technical development.
We keep developing sheeter and slitter machine from DONGFANG brand. We naming them as main two series ROLL TO ROLL and ROLL TO SHEETS.
Our machines offer solutions for different industries, like paper bag making, paper cup raw board sheeting, carton box board cutting, food anti-oil paper cross-cutting, thermal paper roll making line, printing house and raw reel-material supplier searching.
All staff of our company will open up the market at home and abroad with a completely new appearance and provide numerous customers with famous-brand products and credit service.
