Product Specifications
| Prod Model: |
SL series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Labeling Machinery |
| Processing Type: |
Bottle |
| Automatic Grade: |
Automatic |
| Type: |
Sleeve Labeling Machine |
| Driven Type: |
Electric |
| Packaging Type: |
Bottles |
| Packaging Material: |
Plastic |
| Applicable Industry: |
Commodity |
| Application: |
Milk |
Product Description

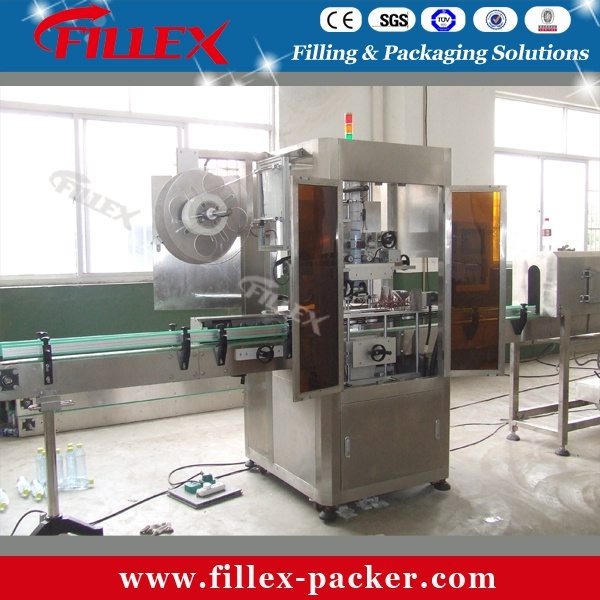

Automatic PVC Labeling Machine/Equipment/
1. Cutter head unit
Builtin blade to conduct cutting operation to the shrinking film with planet matching type and deflection crankshaft steel structure.
2. Machine frame
The whole machine adopts aluminium alloy, combined with anode treatment and 304 stainless steel, for supporting the main machine and fixed conveyor belt.
3. Shrinking oven
Take advantage of heat from electric heating or steam to shrink and paste inserted labels on the bottles.
4. Driving unit
Single unit or double units synchronized servomotor is adopted for control to convey shrinking film at fixed dimension.
5. Screw for bottle separation
Put inserted material on the bottles and convey them at fixed clearance through the screw so that the bottles separate with equal distance and it is easier for label inserting.
6. Bottle carrying unit
Synchronized running at both sides, use only on hand wheel to adjust the height and bottle positioning, the purpose of which is to ensure no shaken of bottle during conveying and to be easier for setting of label inserted height.
7. Three-color caution light
During normal running, the green light is on, in case of lacking label film material, the yellow light is on; And during abnormal situation, the red light is flashing.
8. Central column
To insert and pull of the label film material so that the film material can be conveyed and cut.
|
SL series |
Technical Parameters |
|
Model |
SL-150 |
SL-250 |
|
Input Power |
1.5KW |
3.0KW |
|
Input Voltage |
3, 380/220VAC |
3, 380/220VAC |
|
Production Efficiengcy |
150(Bottle/min) |
250(Bottle/min) |
|
Size of Host Machine |
L2100mm x W850mm x H2000mm |
L2100mm x W850mm x H2000mm |
|
Applicable Diameter of Bottle Body |
Φ 28mm-Φ 125mm |
Φ 28mm-Φ 125mm |
|
Applicable Length of Lable |
30mm-250mm |
30mm-250mm |
|
Applicable Thickness of Label |
0.03mm-0.13mm |
0.03mm-0.13mm |
|
Applicable Internal Diameter of Paper Tube |
(Free Adjustment) |
(Free Adjustment) |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
