Product Description

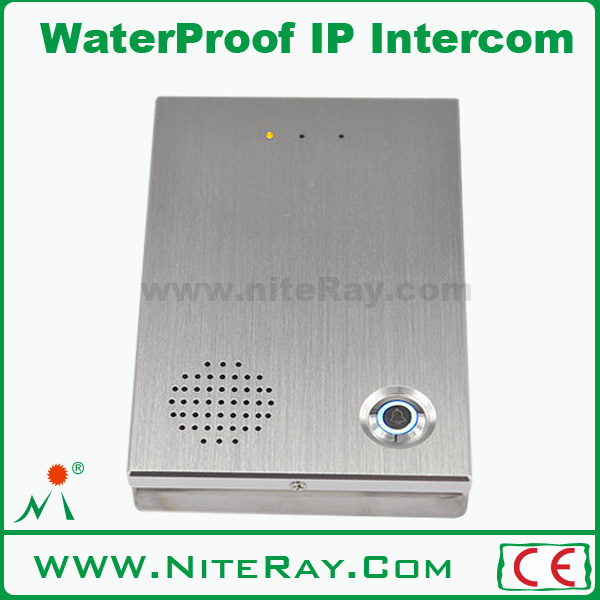

New generation SIP door phone/ IP intercom brought our by NiteRay Electronic, Q504 is a New VOIP product that work with SIP communication network with Fully Waterproof design. With this door phone, people inside can talk with visitor and open door with their ip phones.
IP Door Phone features:
1, Made of Alloy metal +Stainless steel material
2, Metal wire drawing process face plate
3, IP66 fully waterproof
4, Replay to connect to door lock, NO/NC relay mode
5, Relay time adjustable
6, Use SIP protocol, easy to deploy
7, Can be powered by PoE
8, Directly call to presettelephone
10, High quality conversation voice
11, Full Duplex intercom
12, Auto Answer, Auto hand down
13, Powerful Web management
14, Auto provision via FTP, TFTP
FAQ
1, How can I use the IP door phone if I do not have a IP PBX?
Better you have, IP PBX/server is very important to the door phones.
You could still use the door phone if you do not have, but it just that you run a train on the ground but not the rail.
2, How to use mobile phone to open door remotely?
Once the call astablished, you cold entry the password on the keypad(touch pad can be ok too) to open the door
3, How can I find this IP door phone IP address?
Press the # key and hold for over 10 seconds.
4, Can I install it outside?
Yes, if there might be rain or water, Q504 up to IP66 fully waterproof, it can be installed outside.
5, Is there any logo on the surface and web management? Can I OEM?
NO, can provide OEM if order above 500 pcs, one color silkprint logo on front panel.
6, Does the seting complicated? How many languages does it support
NO, just like most IP products/IP telephones, we have setup wizard on the web management interface. You could set it up step by step.
Currently it supports English and Simplified Chinese
7, What if I don't know how to set the web management? Or the hardware broken?
We will provide technical support for you, or please return to our resellers in your area. The shipping cost will be your duty.
8, How do I know this door phone on working?
Yes it is simple, when you are receiveing the call from the door phone, it is working!
9, What's the power?
You could you PoE or DC adapter.
10, How many warranty do you provide?
1 year warranty. Mail support and hardware guarantee.
11, What's your return policy?
We do not accept return unless there is system fault.
|
Description |
Power status indictor (Bell button with light) |
|
Bell button |
|
Dial button |
|
Mic |
|
Speaker |
Setting |
Connect to the network |
|
Obtain IP address |
|
SIP account via web |
|
Speed dial |
|
Open door |
|
Ethernet port |
10/100Mbps |
|
Protocol |
SIP & IAX2 |
|
Network |
Static, DHCP, PPPoE, VPN(L2TP), NAT, STUN, VLAN |
|
Audio codec |
G711 A/uLAW, G729, G723.1 |
|
Echo cancellation |
Full-duplex system |
|
Relative humidity |
20% to 85%, non-condensing |
|
Operating conditions |
0-40 degree |
|
Metrial |
Aluminium alloy, stainless steel |
|
Power |
PoE or adapter (9V) |
|
Size |
160*108*28mm |
|
Weight |
0.68kg |
