| Prod Model: |
HKDZPZ-12500/34.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Power |
| Phase: |
Three |
| Coil Number: |
Other |
| Packaging Details: |
Sea Worthy Packing |
| Coil Structure: |
Toroidal |
| Delivery Detail: |
1~3 Months |
| Type: |
Furnace Transformer |
Product Description
Specifications
Furnace trans. 1) Top 1 in China: 120MVA EAF trans. 2) ISO9001, ISO14001, CE 3) Apply for IEC, JB, ANSI 4) Up to 110kV, 160MVA

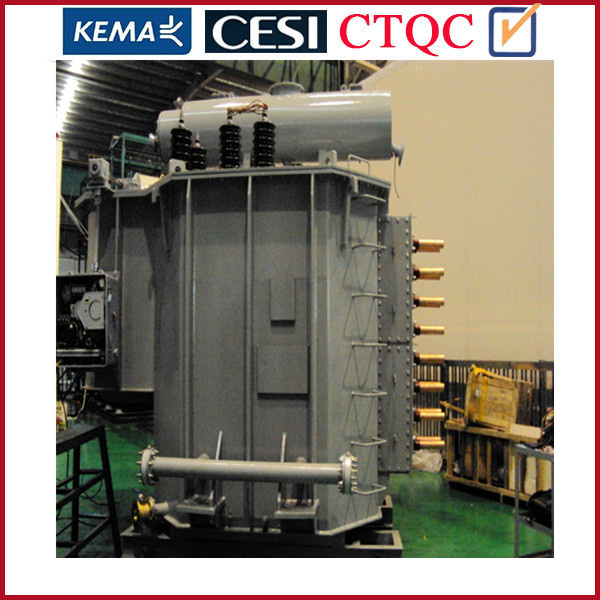

12.5MVA, 34.5KV Single phase Electric Arc Furnace Transformer
Main function and features
Furnace transformers are separated with normal power transformer with its characteristic of massive secondary currents which are the main products of Shenda Electric with many advantages both on quality and price. As an example a 30MVA unit at 150V would result in a secondary current of 115 kilo ampere. For these high secondary currents special bushings are required to be connected to the bus-bars. These bushings are specified with very specific arrangements to suit the bus-bar arrangement and cooling system. Furnace bus-bar are mostly water-cooled. The cooler are either of the oil forced (OFAF) or Oil forced water OFWF).
Shenda electric is renowned and appreciated by its reliable products performance and integrated services.
Brief specification
1) Voltage class: 6~110 KV
2) Capacity: 630 KVA to 120, 000 KVA
3) Short-circuit impedance: 4.5~21%
4) Losses: No-load losses is fully comply with IEC standard requirements
Application:
Arc furnaces are used in steel industry for smelting scrap iron and for refining steel. Other application areas are:
1) Smelting glass and ceramics
2) Manufacturing or refining many other materials etc. Ferrochromium, ferromanganese, different abrasive materials (oxides and nitrides), semiconducting base materials, nanopowders etc.
3) Electric arc furnace (EAF) transformers are required for many different furnace processes and applications. They are built for:
A, Steel furnaces, mainly long arc
B, Landle furnaces
C, ferro-alloy furnace and similar with short or submerged are
D, Smelting of other materials
|
Type |
Rated Power (kVA) |
Connection Symbol |
Primary Voltage (kV) |
Secondary Voltage (V) |
Regulation Voltage Step |
Type of Taping |
Short-Circuit Impedance (%) |
No-Load Loss (W) |
On-Load Loss (W) |
Active Part Weight (kg) |
Oil Weight (kg) |
Transportation Weight (kg) |
ToTal Weight |
|
HKS 1000/10 |
1000 |
Dd0 |
10 |
72-64 |
5 |
No-Load |
6.5 |
3.02 |
14 |
2.9 |
2.87 |
7.965 |
7.965 |
|
HKS-1600/10 |
1600 |
D-Y,d0-11 |
10 |
345-199 |
8 |
No-Load |
7 |
4.06 |
18.26 |
3.8 |
2.91 |
8.98 |
8.98 |
|
HKS-3000/10 |
3000 |
Dd0 |
10 |
126-70 |
8 |
No-Load |
7 |
5.33 |
45 |
3.4 |
3.8 |
10.3 |
12.2 |
|
HKSSP-3150/10 |
3150 |
Yd11 |
10 |
230-130 |
5 |
No-Load |
7 |
6.36 |
31.02 |
7.3 |
3.5 |
12.4 |
14.12 |
|
HKSSPZ-4000/6 |
4000 |
Yd11 |
6 |
200-59 |
15 |
On-Load |
4.5 |
11.2 |
37 |
11.9 |
9.52 |
24.58 |
28.3 |
|
HKSSP-4500/10 |
4500 |
Dd0 |
10 |
120-92 |
8 |
No-Load |
6.5 |
8.33 |
48.82 |
8.1 |
4.8 |
15.64 |
17.25 |
|
HKSSP-6000/10 |
6000 |
Yd11 |
10 |
140-100 |
7 |
No-Load |
8 |
9.2 |
66.6 |
9.2 |
6.07 |
16.9 |
18.66 |
|
HKSSPZ-6300/10 |
6300 |
Ddo |
10 |
134-110 |
9 |
On-Load |
6 |
7.7 |
66.5 |
7.5 |
6.92 |
17.5 |
19.8 |
|
HKSSP-3200/35 |
3200 |
Yd11 |
35 |
230-150 |
5 |
No-Load |
7 |
7.11 |
40.13 |
7 |
5.6 |
15.1 |
16.2 |
|
HKSSP-5600/35 |
5600 |
Yd11 |
35 |
270~160 |
7 |
No-Load |
6 |
8.77 |
53.2 |
9.3 |
7.05 |
19 |
21 |
|
HKSSP-6300/35 |
6300 |
Yd11 |
35 |
140~100 |
9 |
No-Load |
7.5 |
9.01 |
69.87 |
9.3 |
6.38 |
18.1 |
21.2 |
|
HKSSP-10000/35 |
10000 |
Yd11 |
35 |
350~170 |
9 |
No-Load |
7 |
10.1 |
79.7 |
20.3 |
9.3 |
33.2 |
37 |
|
HKSSP-12500/35 |
12500 |
Yd11 |
35 |
365~153 |
5 |
No-Load |
7 |
16.6 |
95 |
14.9 |
8.7 |
28.7 |
30 |
|
HCS-1000/10 |
1000 |
Yd11 |
10 |
80~60 |
5 |
No-Load |
6 |
3.73 |
12.2 |
3.3 |
3.0 |
7.9 |
7.9 |
|
HCS-1800/10 |
1800 |
Yd11 |
10 |
105~75 |
5 |
No-Load |
7 |
5.4 |
28.8 |
4.6 |
3.0 |
10 |
10 |
|
HCSSP-3000/10 |
3000 |
Dd0 |
10 |
80~108 |
8 |
No-Load |
6.5 |
3.9 |
65.5 |
6.6 |
4.2 |
13.7 |
13.7 |
|
HCSSP-5000/10 |
5000 |
Yd11 |
10 |
120~95 |
5 |
No-Load |
6.5 |
10.23 |
44.6 |
9.6 |
5.8 |
18.2 |
19.8 |
|
HCSSP-8000/10 |
8000 |
Dd0 |
10 |
128~112 |
5 |
No-Load |
7 |
11.9 |
94 |
10.7 |
8.8 |
19 |
21.83 |
|
HCSSP-6300/35 |
6300 |
Yd11 |
35 |
126~98 |
8 |
No-Load |
8 |
8.1 |
87.6 |
9.4 |
5.5 |
16.3 |
19 |
|
HCSSPZ-10000/35 |
10000 |
D-Y,d0-11 |
35 |
164~98 |
19 |
On-Load |
7 |
16.8 |
91.35 |
17.8 |
14.7 |
37 |
41.2 |
|
HCSSP-12500/35 |
12500 |
Dd0 |
35 |
165~126 |
13 |
No-Load |
6.5 |
16.8 |
112.1 |
14.1 |
8.9 |
25.4 |
28.8 |
