Product Specifications
| Prod Model: |
BYS-2520 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Width Of Process Glass:300~6000mm: |
The Thickness of Process Glass:3~60mm |
| The Width Of Glass Chamfering:0.5~3mm: |
The Speed Glass Transmission:0.5~8m/Min |
| Type: |
Glass Edging Machine |
| Certification: |
ISO |
| Control System: |
PLC |
Product Description

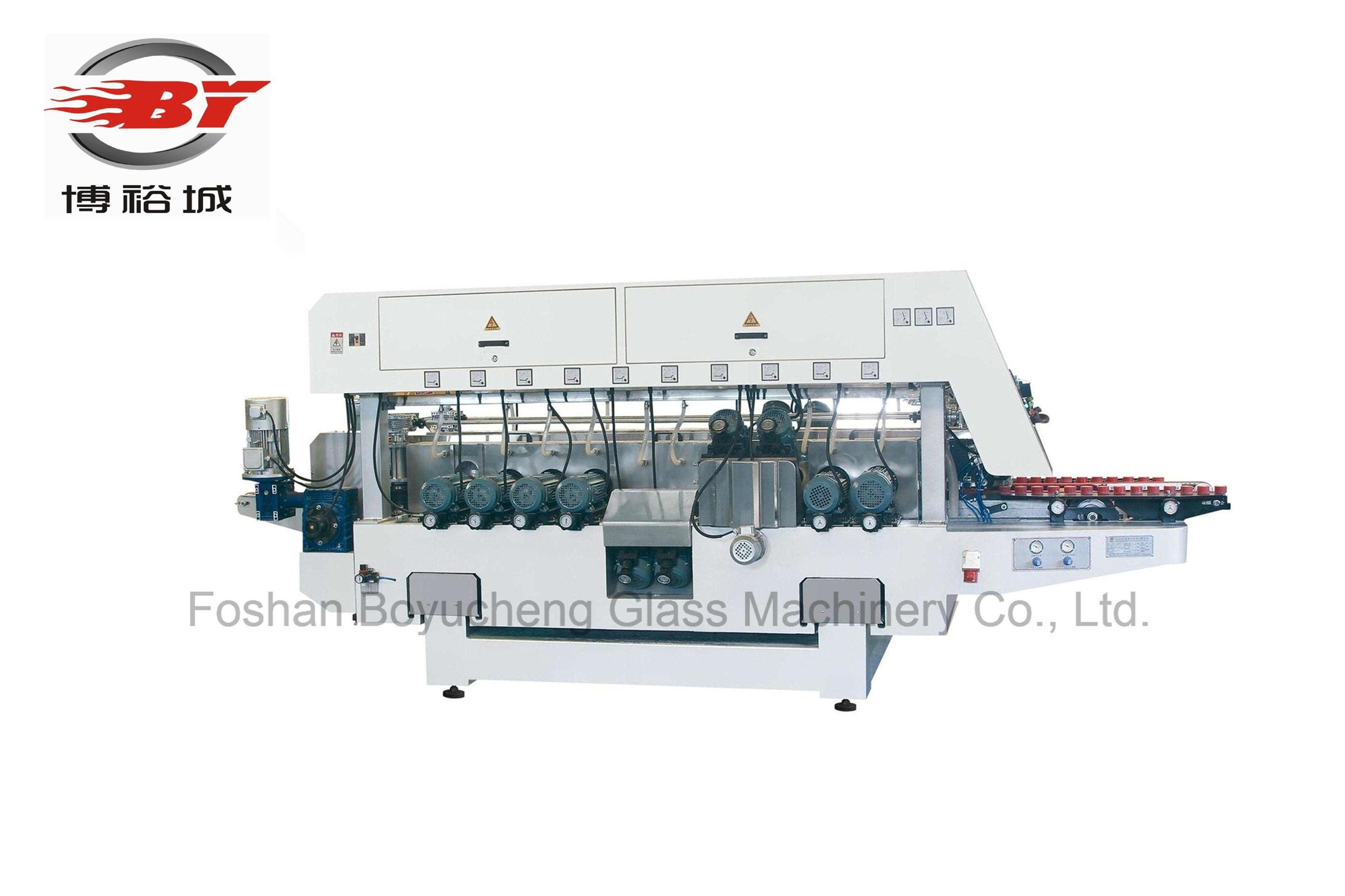

20 grindig head glass double edging machine:
High-grade furniture glass double edging machine series adopts 18 grinding heads design(also can optional 22 grinding heads and high efficiency high-grade type of 26 grinding heads ),configuration 50 mm of wide transfer leather belt,the conventional glass minimum size is 180 mm × 180 mm,the thinnest glass is 2mm(The thickest depending on the processing requirement and the quality of grinding wheel).This machine structure is advanced, precision parts, excellent assembling workmanship,top-quality components ,stable performance,excellent quality,easy operation and maintenance.Processing glass diagonal error within 0.5 mm,Parallelism error within 0.1 mm,chamfer size uniform, angular, clear and bright of polishing, no white edges,no chipping,without the round edge and other phenomena, effect is very stable,and suitable for processing all kinds of high-grade furniture glass and architectural glass products.(Extensible laser bar code recognition automatic control )
BYS 60 20 - A
BYS----- The series of the product
60--------The maximum value of glass (6000mm)
20--------The number of grinding head
A-----------A: Standard type B:The device with the exception of membrane
C:The device with safety chamfering device D: Small ultra (80mm×80mm)
Main technical parameters:| the number of motors | 20 | The thickness of process glass | 3~25mm |
| the width of glass chamfering | 0.5~3mm | The error of glass chamfering width | ±0.2mm/m |
| The error of glass parallel | ±0.2mm/m | The error of glass diagona | ±0.5mm/m² |
| The width of the positioning error | ±0.1mm/m² | Maximum bottom margin grinding | 3mm |
| The speed glass transmission | 0.5~8m/min | Pneumatic working pressure | 0.6~0.8Mpa |
| Power source | 380V/50Hz/3P | Total power | 49Kw |
Models and Specifications(processing glass width of specifications according to customer demand):| Model | Number grinding head | Minimum processing size | Max size |
| BYS-1020 | 20 | 80mm | 1000mm |
| BYS-1520 | 20 | 160mm | 1500mm |
| BYS-2020 | 20 | 160mm | 2000mm |
| BYS-2520 | 20 | 160mm | 2500mm |
| BYS-3020 | 20 | 200mm | 3000mm |
| BYS-4520 | 20 | 200mm | 4500mm |
| BYS-6020 | 20 | 300mm | 6000mm |
External dimension(mm):
L:2500+(100×grinding head number)
W:1750+Max width
H:1900
Foshan Boyucheng Glass Machinery Limited Company has been decated to the manufacture of glass machine since 2009. Our company is located in Shunde, Foshan, China. Enjoying convenient transportation. It takes half an hour to the cities of Zhuhai and Guangzhou by car.
Our company has the general taxpayer qualification and total assets of millions of US Dollars.
Our factory covers an area of 6, 800 square meters and we integrate product design, manufacture
And assembly. Our products cover more than 30 models of 12 major series:
Glass tempering furnace
Glass double edging machine
Glass straight line beveling edging machine
Glass straight line edging machine
Glass straight line multilevel edging machine
Glass washing machine
Glass drilling machine
Glass lrregular shape machine
Glass automatic sandblasting machine
Glass chamfering machine
Glass automatic cutting machine
Glass automatic loading machine
The main products include glass double edger, glass double round edger, glass beveling edger, glass straight line edger.
Besides, we are making great efforts to develop new products to meet different requirements.
Suchas glass straight line double edging machine production line and glass L type doble edging machine production line. And equipped with automatic single machine and dual machine, can be separately operating.
Our products are extensively are applicable to the glass processing enterprise, furniture and electronics glass, laminated insulating glass, architectural glass, photovoltaic glass and so on. Advanced techology content, high reliability, easy operation and low maintenance cost have enabled our products to take the leading position in the field.
