Changzhou Southern Electronic Element Factory Co., Ltd. >> Fuse Resistor, Resistor, Fusible Resistor, Fuse Resistor for CFL etc. Rxf

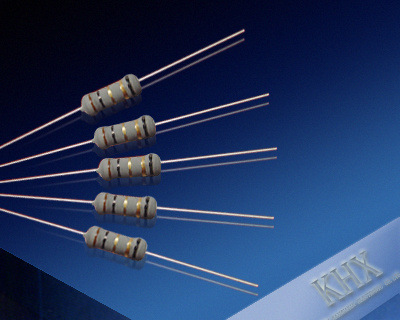

Fuse Resistor, Resistor, Fusible Resistor, Fuse Resistor for CFL etc. Rxf

Name: Fuse Resistor, Resistor, Fusible Resistor, Fuse Resistor for CFL etc. Rxf
Brand: china-manufacturer-directory.com
SKU: 722240705
Availability: InStock
Rating: 4.8 (140 reviews)

Supplier:	Changzhou Southern Electronic Element Factory Co., Ltd.
Price:	US $ 0.01/Piece
Min Order:	10000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	RXF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Certification:	UL
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Type:	Fuse Resistor
Package Type:	Export Carton
Brand:	Liwang

Product Description

We can supply Fuse resistor,and our product is widely used for CFL etc.

Resistance:Fixed Resistor

Installation:DIP Resistor

Material:Wire-wound Resistor

Package Type:Throught Hole

Environmental Certification:ISO14000

Quality Certification:ISO9001: 2008

Safety Certification:CQC 03003095~3097

Other Certification:RoHS

Export Markets:Global

Additional Info.

Trademark:liwang

Packing:Box

Origin:Changzhou Jiangsu China(Mainland)

Production Capacity:100000pieces Per Week

Product Description

PCB-specific fuse resistor UL

1, Style is your market
Used for power industry to protective circuit.

2, Selling point
1)Prompt delivery;
2)Variety of packing: Bulk or tape in box;
3)Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage;
4)Factory direct price;
5)None forbidden.

3, Description
1)High quality;
2)Meet performance requirement of CNS 2320, JIS 6402;
3)Standard tolerance: 5%. ( 1% Available );
4)Ceramic core. (High conductivity);
5)Mtal film. (High stability);
6)End cap (High reliability fitting by original cap-pressing method);
7)Epoxy resin (Insulative lacquer, solvent-proof);
8)Color code (Per MIL & EIA standards);
9)Lead wire (Excellent solderability);
10)OEM;
11)The normal size coating is yellow and the small size coating is pink.

4, Function
To protective circuit.

5, Advantage
1)Factory direct price;
2)All materials & machines imported from Taiwan;
3)RoHS compliant & ISO9001(2008);
4)Prompt delivery;
5)None forbidden.

TYPEDIMENSION(mm)MAX.
WORKING VOLTAGE(V)MAX.
OVERLOAD VOLTAGE(V)INSULATION RESISTANCE TO VOLTAGE(V)RESISTANCE TOLERANCERESISTANCE RANGE(OHM)

L
± 1D
± 1H
± 1d± 0.05MIN.MAX.

FUSE
1/4W, 1/2WS6.52.3260.51503times of rated voltage250J(± 5%)0.1Ω1KΩ

FUSE
1/2W, 1WS9.53.2250.562503times of rated voltage300J(± 5%)0.1Ω1KΩ

FUSE
1W, 2WS124.5310.752503times of rated voltage350J(± 5%)0.1Ω1KΩ

FUSE
2W, 3WS165330.752503times of rated voltage350J(± 5%)0.1Ω1KΩ

FUSE
3W, 5WS186330.753003times of rated voltage350J(± 5%)0.1Ω1KΩ

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment".
