Fuse Resistor

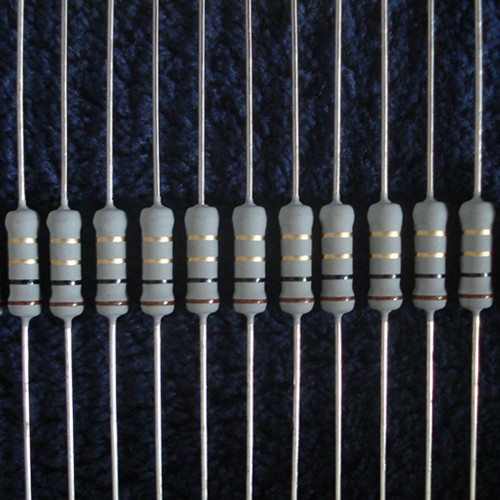

Name: Fuse Resistor
Brand: China-Manufacturer-Directory.com
SKU: 715784095
Availability: InStock
Rating: 5 (124 reviews)

Supplier:	Hebi Boda Electronic Science and Technology Co., Ltd.
Price:	US $ 0.002/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	fuse resistor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance:	Fixed Resistor
Type:	Fuse Resistor
Installation:	DIP Resistor
Function For Resistance:	Protective Resistor
Material:	Metal Film Resistor
Package Type:	Throught Hole

Product Description

Fuse resistor
Operating temperature: -25C - +125C.
Resistance tolerance: ± 1%; ± 2%; ± 5%, ± 10%.
Power Rating: 1/6W, 1/4W, 1/2WS, 1/2W, 1WS, 1W, 2WS, 2W, 3WS
Resistance range: 1-1k ohm

Specification		Main size,mm		Down-lead size,mm
RF10 (FRL)	RF10X (FRN)	L	ΦD	Φd	1
1/4W\1/3W	_	6.0±0.5	2.3±0.3	0.4±0.05	27±3.0
_	1/2W	9.0±1.0	3±0.5	0.5±0.05	27±3.0
1/2W	1W	9.0±1.0	3.2±0.5	0.5±0.05	27±3.0
1W	2W	12.0±1.0	4.0±0.5	0.65±0.05	31±3.0
2W	3W	15.0±1.0	5.0±0.5	0.7±0.05	31±5.0
3W	5W	15.0±1.0	5.5±0.5	0.7±0.05	31±5.0

type		resistance	tolerance (%)	open circuit voltage (V)	isolation voltage (V)	temperature
RF10 (FRL)	RF10X (FRN)	resistance	tolerance (%)	open circuit voltage (V)	isolation voltage (V)	temperature
1/4W\1/3W	_	1~1K	J:5 K:10	200	250	-25~125
_	1/2W	0.12~1K		250	250
1/2W	1W	0.12~1K		350	350
1W	2W	0.22~1K		350	350
2W	3W	0.33~1K		350	350
3W	5W	0.33~1K

Hebi Boda established in 1966, is the largest producer of resistors in north China. As a high-tech enterprise of Henan province. Boda owns a provincial level R&D center for electronic element techniques.

The Company specializes in manufacturing resistors of all types. Most of the resistors are ordered by some leading domestic electric appliances producers.

The Company has a reliable product quality control & guaranty system. And ISO9001 and ISO14001: 2004 certified. Also awarded the CQC safety certificate. Obtained certificate of UL of United Stated and cUL of Canada. Certificate of VDE of Germany and cUL of Canada.
