Algae biomass
The farming of algae, or algaculture,has the potential to address several of the world's most demanding challenges,from rising oil prices and conflicts between the demand for biofuel and food, to the needs of a rapidly growing worldwide population. Biofuels, one of the most promising areas, can replace fossil fuels and help reduce the introduction of new carbon dioxide (CO2).
While large-scale commercialization of algae is still to be realized as a source of biofuels, algaculture is already producing food for humans and animals as well as fertilizers, dyes and colorants for a wide range of industries.A number of entrepreneurs, such as Aurora Algae, based in Hayward, California, are currently producing Omega-3 EPA oil for the pharmaceutical and neutraceutical markets.
A number of other "green" benefits are significant. At some algae research institutions in singapore, for example,greenhouse gases are captured and recycled as feedstocks in an enclosed algae-based growth system.
Tubular separator
Our GQ series tubular separator is the best solution for universities, research and development facilities as well as start ups. They are easy to handle, process all kinds of algae cells, cover the entire possible process spectrum due to the different available bowl types and offer maximum scale up security. Our GQ series tubular separator is the best, most comfortable and reliable alternative to explore your first steps , either for basic research or in your algae production.
Tubular separator general
Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,our company have two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.
For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.

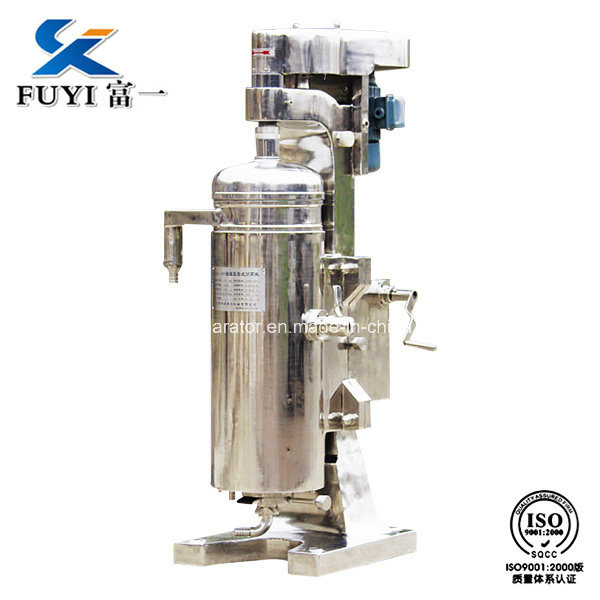

GQ series tubular separator .
GQ series tubular separator is liquid solid two phase centrifuge .It main applicated in liquid solid separation .
Tubular separator is a high-speed precise ,energy ,efficiency ,environmental machinery within the all separation machinery .To
achieve the separation purpose by the different material liquid proportion based the centrifugal force .As photo show the raw
material liquid is feeding by the lower of the separator and outlet by the upper machinery boday and solid remain the bowl inner
surface by the centrifugal force .
Algae biomass experiment
GQ series tubular separation
1. liquid clarification
2. Harvesting biomass
3. Process of granular, crystalline & fibrous suspensions
4. Ink separation
5. Bio-product extraction
6. Chinese medicine clarify
Our company tubular separator applicated in many industry process. If you have question or problem in liquid separation ,please email us .
Tubular centrifuge parameters
Model | Bowl Speed
(rpm) | G-force | volume
(L) | voltage
(Kw) | Dimension Overall (mm) |
| Long | wide | High |
| 75 | 19000 | 15700 | 2.2 | 1.5 | 760 | 450 | 1200 |
| 105 | 16300 | 15650 | 6 | 2.2 | 840 | 500 | 1600 |
| 125 | 15000 | 157500 | 8 | 3 | 900 | 550 | 1600 |
| 150 | 14000 | 15700 | 10 | 3 | 1020 | 600 | 1600 |
Notice ,150 model only have GQ series centrifuge separator.
Our company was established in June 2011, formerly known as Liaoyang Sunny Pharmaceutical Machinery Co., Ltd. Our company is now a technologically advanced and high-tech enterprise integrating R&D, production, and sales. Our company is a member of National separation machinery of Standardization Technical Committees, and also the Council Member of China General Machinery Industry Association. The director of our company is one of the first separation equipment researchers in China who obtained multiple National awards. "Tubular Separator", currently in effect, is the national standard and was drafted by our company. And in the same industry, our company is one of the first batches to pass ISO9001: 2000 quality system certification.
Our comprehensive performance has reached the advanced international level. Our company and branch office cover a total area of 60mu (1mu equals to 666.7m2) and a building area of 13, 000 square meters for equipment design and manufacturing, equipment inspection and test run.
With spare parts library and the material separation lab and the full equipped equipment, our company is one of the biggest manufacturers of separator equipment in domestic market. Our team is consisting of technology developers, PHD, postgraduates and undergraduates. We have close technical exchanges with Chinese Academy of Sciences, Zhejiang University and Tianjin University. We have won lots of national technical patents. Every year our company attends world-class meetings on separator machine and learns frontier technology.
Our equipment is widely used in pharmaceutical, chemical, food, beverage, blood products, material classification, biological diesel oil and other industries for the separation of solid and liquid or the separation of liquid and liquid. At present, there are thousands of equipment with all sizes have been used in lot of well known industries. As a domestic industry leader, we would like to provide our various products, excellence quality and perfect service to meet the market demand in the whole world, win the majority of users' trust and become the pioneer of the machinery manufacturing industry in the new century!
