Product Specifications
| Prod Model: |
6CTAA8.3-G2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
163kw |
| Running Speed: |
1500rpm |
| Fuel: |
Diesel Engine |
Product Description

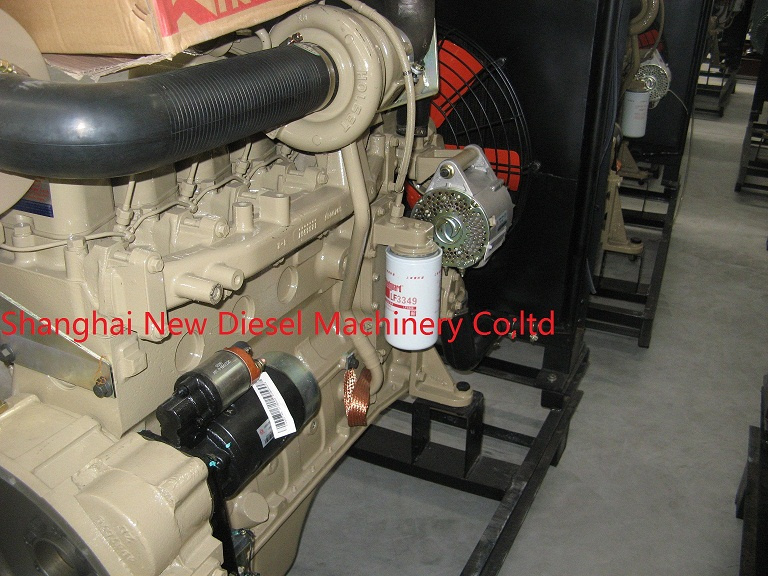

CUMMINS G-Drive Engine
Engine Technical Datasheet
6\4\ In-line, 6 Cylinder, 4 Cycle, Turbo Intercooler Diesel Engine
Bore× Stroke 114mm× 135mm
Displacement 8.3 Liters
Compression Ration 16.5: 1
Cummins diesel engine6CTA/cummins diesel engine6CTA8.3/cummins diesel engine6CTA8.3G2
Rated Speed 1500r/min (1800r/min)
Rated Power 163kW(183kW)
Standby Power 180kW(203kW)
Cummins diesel engine6CTA/cummins diesel engine6CTA8.3/cummins diesel engine6CTA8.3G2
Genset Matching Power 130kW(150Kw)
Fuel Injection Pump PB/WPB/W Injection Pump
Governor Electrical Governor
RSV RSV Mechanical Governor
Steady Speed Droop ≤ 1%(Electrical Governor)
≤ 6%(Mechanical Governor)
Lubricant Capacity 24 24 Liters
Coolant Capacity 12.3() 12.3 Liters(Engine Only)
Cummins diesel engine6CTA/cummins diesel engine6CTA8.3/cummins diesel engine6CTA8.3G2
Net Weight 629 629 kg
Wet Weight 666 666kg
Overall Dimension(L× W× H) 1128mm× 740mm× 1084mm
Coolant Intake Size Φ 50mm
Coolant Outlet Size Φ 57mm
/Flywheel/Flywheel Housing SAE2#/SAE2#
Cooling Way Positive Water Cooling Cycle
Cummins diesel engine6CTA/cummins diesel engine6CTA8.3/cummins diesel engine6CTA8.3G2 and also other cummins engines with reliable quality and competative price, contact with us for more
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
