Product Specifications
| Prod Model: |
g11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sheet Size: |
1020*1220 |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Inorganic Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
20KV~100KV |
| Brand: |
Nova |
| Color: |
Yellowish |

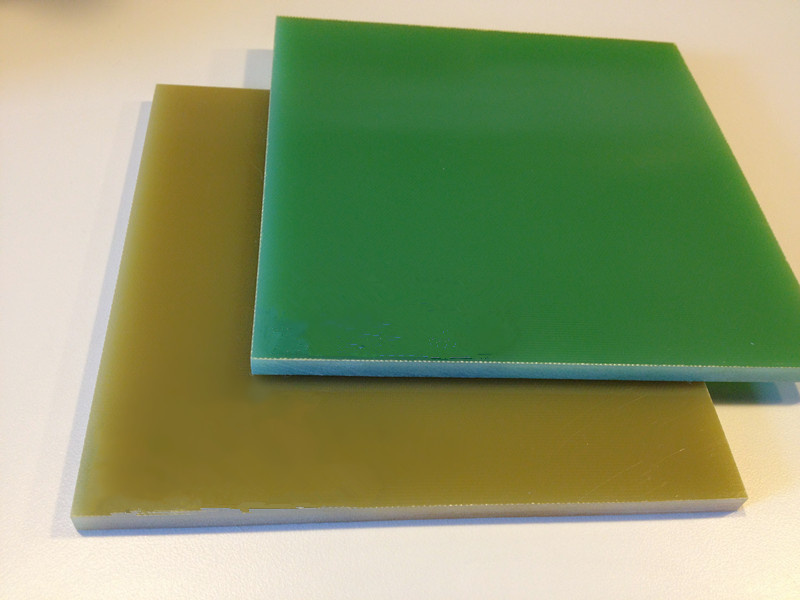

Product Description
Introduction:
In today's G11 laminate sheet is made up with a hight temperature epoxy making up the bulk of heavy sheet and then using finer glass cloth with high temperature resistant epoxy giving a high performance outer finish.
Today what is called FR5 is the Brominated flame retardant version of G 11. The FR 5 material can usually be used where G11 material is specified, however G11 Laminate should not be used where FR-5 is specified.
Applications:
High performance G11 for your extremely strict demand. It has Comparative Tracking Index (CTI) 600V, Halogen-free, Flame-resistance, and H-class heart-resistant, widely used in harsh conditions (high humidity, dusty, filthy).
Advantages:
*Temperture Index: 180 Degree Celsius
*Tracking Index(CTI) 600V
*Halogen-free
*Flame-resistance
*H-class heart-resistant
Specifications:
1) Grade: G11
2) Color: Green
3) Thickness range: 0.1mm~50mm
4) Sheet size: 1020*1220mm; 1220*2040mm
5) Min. Order Quantity: 1, 000kgs in a lot
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.
We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.
Nova supplies the following products:
1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)
2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)
3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)
4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.
Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.
Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
