Product Specifications
| Prod Model: |
G31-775 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
G31-755 |
| Northbridge: |
Intel G31 Chipset |
| Southbridge: |
Intel+Ich6 |
| Graphics: |
Intel Graphics Media Accelerator 3000 |
| Shipping Way: |
DHL /UPS / FedEx |
| Shipping Time: |
2-4 Working Days |
| Origin Of Place: |
Shenzhen ,China |
| Products Logo: |
for Your Optional |
| Main Chipset: |
Intel |
| Structure: |
ATX |
| Memory: |
DDR2 |
| CPU Socket: |
LGA 775 |
Product Description

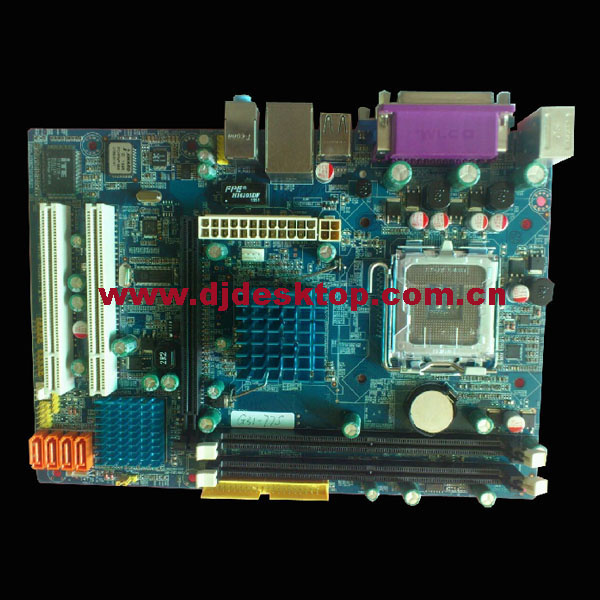

G31-775 Motherboard Supports Intel Pentium HT (Hyper Threading Technology) CPU
CPU |
| Supports Intel Pentium HT (Hyper Threading Technology) CPU |
| Supports 533/800/1066/1333 MHz HOST BUS Frequency |
| Supports Intel Conroe-L Socket775 CPU |
| Supports Intel Conroe LGA775 CPU |
| Supports Intel Pentium4/ D Socket 775 CPU |
| Supports Intel Celeron D Socket 775 CPU |
| Chipset |
| Northbridge: Intel G31 Chipset |
| Southbridge: Intel+ICH6 |
| Graphics |
| Intel Graphics Media Accelerator 3000 |
| Memory |
| Provides 2*DDRII slots |
| Supports DDRII 533/667/800 Double Channel Mode (only for G31 supports DDR2 800 ) |
| Expansion Slot |
| 1*PCI Express X16 slot |
| 2*32-bit PCI slots 2.2 specification compliant |
| LAN |
| RJ45 REALTEK RTL8100C(10/100 Mbps) |
| Sound Card |
| ALC655/653 (Onboard AC'97 2.3 specification compliant) |
| IDE |
| Provides 1 channel connecting for IDE drives |
| Supports Ultra ATA66/100/133 synchronous DMA modes |
| SATA |
| 4*SATA2 ports |
| I/O Ports |
| 1*serial port |
| 1*parallel port, supports EPP/ECP/SPP transfers |
| 4*USB ports |
| 1*PS/2 Keyboard port |
| 1*PS/2 Mouse port |
| 1*VGA PORT |
| 1*Multiple stereo( Mic In \ Line In \ Line Out jack) |
| 1*RJ45 PORT |
| Onboard Ports |
| 24 PIN ATX POWER PORT |
| 4 PIN ATX 12V POWER PORT |
| 1*CD_IN port |
| 2*USB 2.0 PORTS |
| 1*CPU fan connector |
| 1*F_AUDIO PORT |
| BIOS |
| 8M FLASH ROM |
| SIZE |
| 240mm x 170mm |
| PACKING |
| 20PCS IN ONE CARTON |
SZ DJS Co., Ltd. is professional manufacture of computer motherboard & video card. We can assemble desktop computer also.
SZ DJS Co., Ltd. Has been producing OEM intel chipset motherboard & video card more than 10 years. Its solid experience, boundless enthusiasm and stringent quality standards enable we to provide products to meet all kinds of requirements from worldwide electronic chain stores and prime distributors.
The mission of SZ DJS Co., Ltd. is to be a major worldwide provider of high value and high quality products. We welcomes all new partners to develop and share in the extensive global business opportunities together.
We deeply understand that the life of enterprise comes from the continuous innovation and development. We are always doing like that. We also believe that SZ DJS Co., Ltd. Will be a world-grade enterprise with a greater international competitiveness in the near future.
