Product Specifications
| Prod Model: |
1x1x1m 2x1x1m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh: |
60*80mm 80*100mm 80*120mm 100*120mm |
| Wire Diameter: |
2.0mm 2.2mm 2.4mm 2.7mm 2.8mm |
| Size: |
1x1x1m 2x1x1m 3x1x1m, etc. |
| Surface Treatment: |
Galvanized |
| Material: |
Galvanized Iron Wire |
| Application: |
Cages |
| Weave Method: |
Twist |
| Weave Technique: |
Weave |
Product Description

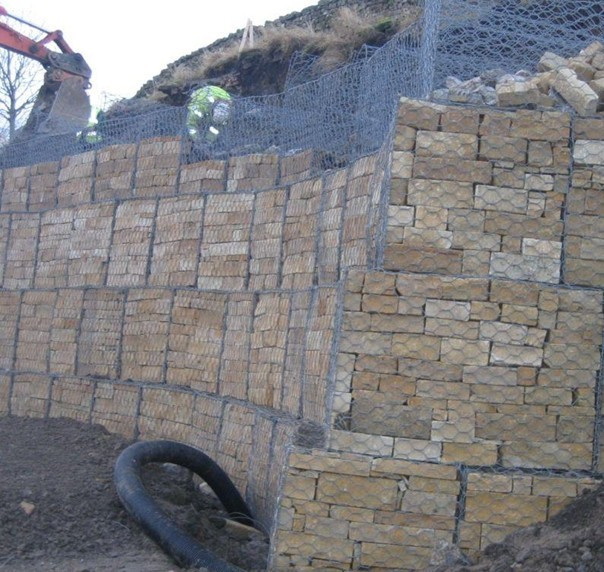

Gabion wire mesh / gabion box/Hexagonal Wire Netting
1Introduction
Gabion is made of hexagonal wire mesh, the wire diameter is basis on the different sizes of hexagon. If the wire is zinc coated, the wire diameter should be 2.0mm to 4.0mm, if it is PVC-coated, the wire should be 3.0mm to 4.5mm, Then the edge wire shoud be thicker one size wire guage than the hexagonal mesh wire
2Material
1. Galvanized wire: Low carbon still wire with diameter ranging from 2.0mm to 4.0mm, tensile strength≥ 380mpa, the wire surface is galvanized, the thickness of zinc layer is customizable, the max zinc content is 300G/M2
2. Zinc-5% aluminum-mixed mischmetal alloy steel wire: A new-type material with diameter ranging from 2.0mm to 4.0mm, tensile strength≥ 380mpa. It offers as more than three times the corrosion resistance of pure zinc
3. Galvanized steel wire, PVC or PE coated: PVC or PE coating will provide great protection to the gabion wire mesh, especially in a high-pollution environment
4. Zinc-5%aluminum-mixed mischmetal alloy steel wire, PVC or PE coated: The steel wire is coated with a PVC or PE protective layer, which provides protection against pollution and can be available in various colors
|
Specified size(mm) |
Diameter of wire (mm) |
Inside Diameter/Outside Diameter(mm) |
Max Wide Cut(m) |
|
60X80 |
φ2.0-2.8 |
φ2.0/3.0-2.8/3.8 |
4.3 |
|
80X100 |
φ2.2-3.2 |
φ2.2/3.2-3.0/4.0 |
4.3 |
|
80X120 |
φ2.2-3.2 |
φ2.2/3.2-3.0/4.0 |
4.3 |
|
100X120 |
φ2.4-3.5 |
φ2.4/3.4-3.2/4.2 |
4.3 |
|
100X150 |
φ2.4-3.5 |
φ2.4/3.4-3.2/4.2 |
4.3 |
|
120X150 |
φ2.7-4.0 |
φ2.7/3.7-3.5/4.5 |
4.3 |
|
Note: PVC coated hexagonal wire diameter up to 4.0mm, maximum 4.5mm wire edge |
|
Gabion Baskets |
River Mattresses |
1×1x1 - 1m³
2×1x1 - 2m³
3×1x1 - 3m³
4×1x1 - 4m³
1×1x0.5 - 0.5m³
2×1x0.5 - 1m³
3×1x0.5 - 1.5m³
4×1x0.5 - 2m³
6×2x0.5 - 6m³
1.5×1x1 - 1.5m³
2×0.5×0.5 - 0.5m³
4×0.5×0.5 - 1m³
|
2×1x0.3 - 0.6m³
3×1x0.3 - 0.9m³
4×1x0.3 - 1.2m³
6×2x0.17 - 2.04m³
6×2x0.23 - 2.76m³
6×2x0.30 - 3.60m³ |
