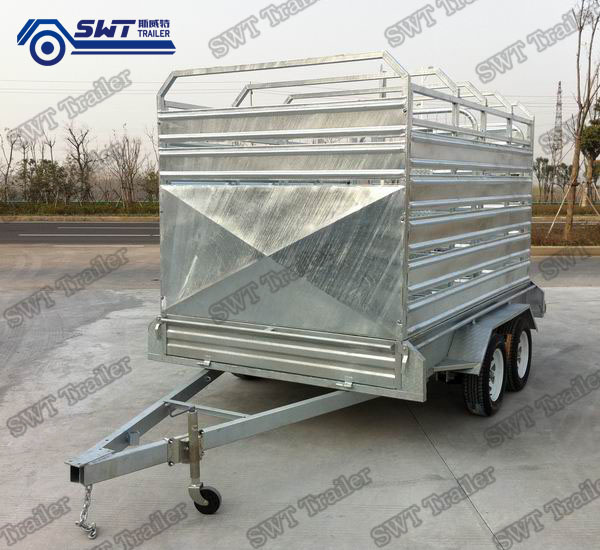

Galvanized Cattle Trailer for Secure Livestock (SWT-CCT126)

Product Specifications

Prod Model:	SWT-CCT126
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Swt-Cct126
Size:	3660X1830mm
Spring:	7 Leafs
Floor & Side:	2.5mm Checker Plate
Axle:	50X50mm Solid
Chassis:	70X50X4mm Rhs (Not Angle)
Wheel:	195r15c
Crate Height:	1800mm
Surface Treatment:	Hot Dipped Gal
ATM:	3500kgs
Type:	Full Trailer
Certification:	DOT
Grade:	Heavy Duty
Tire Number:	4
Color:	White
Axle Number:	2
ABS:	With ABS
Tire Size:	12.00-20
Condition:	New
Loading Weight:	3.5t

Product Description

12x6 Cattle Crate Trailer

Size	Model no	Overall size	Deck size	Spring	Wheel	GVW
8x5ft	SWT-CCT85	4150X2025X2600mm	2440x1525X300mm	7leafs	195R15C	3500kgs
9x5ft	SWT-CCT95	4410X2025X2600mm	2700x1525X300mm	7leafs	195R15C	3500kgs
10x5ft	SWT-CCT105	4760X2025X2600mm	3050x1525X300mm	7leafs	195R15C	3500kgs
12x6ft	SWT-CCT126	5370X2025X2600mm	3660x1830X300mm	7leafs	195R15C	3500kgs

Description For 12x6 Cattle Crate Trailer
STANDARD PARTS	SPECIFICATION
Drawbar	100x50x5mm RHS. 1600mm long with 2x12mm safety chains (AS4177 stamp)
Chassis	70X50x4mm RHS (Not angle)
Floor & Side	2.5mm Checker plate, fully welded on the chassis
Axle	50x50mm Solid square bearing, 12' electric brake on 4 wheels
Spring	60x8mmx7leafs rocker roller suspension (not 5leafs or 6leafs cheap and light spring)
Wheel	195R15C wheel with 15nch white paint rim
Jockey wheel	6inch top wind heavy duty jockey wheel. with E-mark and DOT certificate
Coupler	50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling
Lights	LED Tail-Lights with 7pin plug and 7 core wiring. light with E-mark and DOT certificate
Surface Treatment	Hot dipped galvanized
CRATE DETAILS
Crate Panel	1.5mm steel plate
Crate Height	1800mm
Crate Open Way	3 way door system: Drop, Slide & Swing

PAYMENT TERM&DELIVERY TIME
30% deposit. 70%balance will be paid after we send copy of B/L.
28 days after we get deposit.

WARRANTY
1year for trailer parts.
12 years for trailer box and drawbar and cage.
12years for trailer hot dipped galvanized.

OUR SERVICE
1.We will offer completely assembly drawing to customer after we finish loading container.
2.We will offer completely components list to customer, easy for checking quantity for trailer and trailer parts in the container.
3.We will speed post small parts to customers if any parts have problems under our warranty. We will take whole cost.
4.We will send big parts into next container if any parts have problems under our warranty. Customer also can buy the parts from local market if it is urgently and can not wait for us sending parts to them. We will take whole cost.
5.We are very happy to make some other products for our customers if they need them.
6.We can put customers good into container if they have any products from other supplier.
7.We will give very preferential policies to the customers whom do business with us more than one year. Or if you order more than 6 containers, we will help every customer start trailers business.

FAQ
1. ADVANTAGES OF SWT TRAILER
1.SWT Trailer located in the middle of Shanghai and Nanjing. 1 hour to one and half an hour from Shanghai to our city if you take high speed train. 2 hours by airplane from most city of China to Nanjing airport.
2. SWT Trailer can easily design A\a trailer for our customers according more than 12 years experience. Customers just let us know a roughly ideal and trailer capacity, then we will offer you CAD or 3d drawing for our customers check.
3. SWT Trailer offer unbeatable quality trailers and reasonable price, no matter trailer body or trailer parts, such as axle. We will not make axles by ourselves for reducing cost. We get axles from experienced axle factory which offer axles to top e brand truck factory or car factory. That means the quality is under control.
4. SWT Trailer can offer sample trailer order less than a week.

2. WHY CHOOSE SWT TRAILER
1. SWT trailer made trailers more than 12 years. We had rich experience on trailer. We know what quality trailers customers like. We know how to build a trailer with customer requirement.
2. SWT Trailer engineers had rich experience on designing trailers.
3. SWT Trailer always make high quality products.
4. Each size of SWT's trailer has a corresponding jig.
5. SWT Trailer is a manufacturer, not a trading company.
6. SWT Trailer has western sales manager work for us, which Is easy for you to talk about business. such as NZ and Australia market. You can get quote from our factory then discuss trailer details with our western sales manager.
7. SWT Trailer will buy warehouse in Australia and set a show room In April 2015. We can show our products to customers straight way and rent warehouse to customer free in first 6 months.

3. HOW TO GET A GOOD QUALITY TRAILER
1. Ask trailer supplier to send quality report for steel. best steel brand in China is Baosteel. SWT trailer use Baosteel all the time.
2. Ask trailer supplier to offer drawing for trailer chassis.  It will be easy for you to know what thickness and what type material they used on chassis. Mostly RHS chassis is more stronger than angle chassis. also check how many PCS cross bar on chassis. the more cross bar on chassis the more stronger.
3. All sizes trailers chassis from SWT Trailer are 300mm along with a 50x50 RHS bar.
4. Check the trailer parts with certification or not, such as trailer wheel. trailer lights, trailer coupling, trailer chain, etc. They have to be with certification.
5. Check the axle and see whether the axle is solid or hollow axle. solid axle is 100% stronger than hollow axle. hollow axle with risk for braking if people overload goods on trailer.
6. Check the trailer is bolted designed or fully welded designed. Bolted design trailer sides all use bolts bolt on trailer chassis. Fully welded trailer sides, floor, chassis all welded together.  It is a whole part.
7. Mostly bolted design trailer side and floor use 1.18mm ribbed zinc plate. SWT standard trailers all use checker plate floor. unless customers want to use zinc plate floor, otherwise we won't use it.
