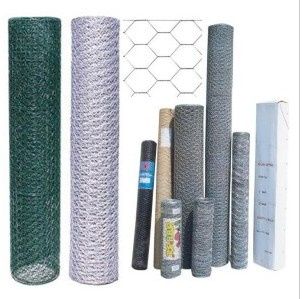

Galvanized Hexagonal Wire Mesh

Product Specifications

Prod Model:	YND-GHW-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Gauge:	0.4-1.8mm
Wire Mesh:	3/8"-4"
Material:	Galvanized Iron Wire
Application:	Barbecue Wire Mesh
Surface Treatment:	Galvanized
Weave Method:	Twist
Weave Technique:	Plain Weave

Product Description

Hexagonal wire netting :
Can be made into different types according to the netting treatment, processing, material used or according to the application. We have commonly three processing methods to make products of different features: Straight twisted, reverse twisted and double twisted strengthened.

Materials applied for hexagonal wire mesh are galvanized iron, stainless steel, plastic coated iron wire or even brass wire.

Hexagonal wire mesh can be made of galvanized iron wire, electro galvanized or hot dipped zinc plated. Galvanized Hexagonal Wire Netting has the features of corrosion-resisting, oxidation-resisting and rust resisting.

Application: As fences, stucco netting, or made into gabions or baskets for protection.

General Specification of Galvanized Hexagonal Wire Netting
Mesh			Min. Galv. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16
