Product Specifications
| Prod Model: |
DYWM961028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Galvanized |
| Material: |
Galvanized Iron Wire |
| Application: |
Construction Wire Mesh |
| Weave Method: |
Twist |
| Weave Technique: |
Plain Weave |
Product Description

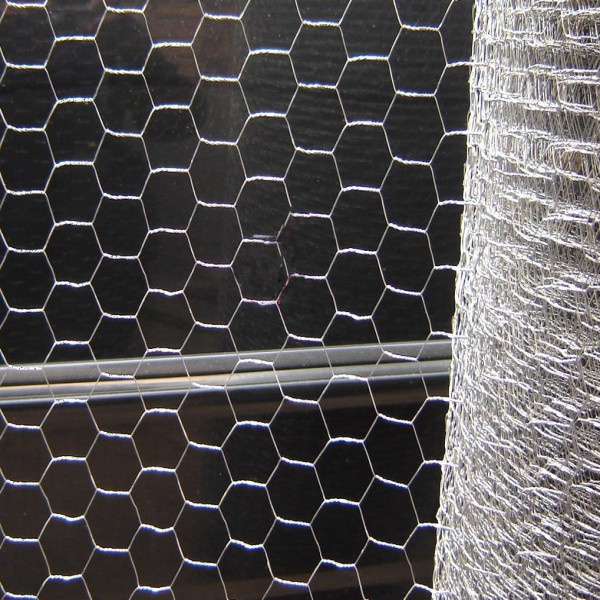

Galvanized Hexagonal Wire Netting
Material:
Low carbon Iron Wire galvanized or PVC coated, stainless steel wire
Characteristcs:
Firm in structure and flat in surface.
Application:
1. In industry, agriculture and construction as reinforcement and fencing material
2. Fence for Poultry Cage, Fishing, Garden and Children playground, etc.
3. Making gabion cages/boxes
Gabion boxes applications:
1. Control and guiding of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Water and soil conservation
5. Bridge protection
6. Strengthening structure of soil
7. Seaside Protection engineering
Assortments Available according to process:
Electro Galvanized before Weaving
Electro Galvanized After Weaving
Hot Dipped Galvanized before Weaving
Hot Dipped Galvanized after Weaving
PVC Coated Before or After Weaving
Stainless Steel Wire netting
Galvanized Drawn Iron Wire netting
Galvanized hexagonal wire netting
|
mesh
|
Min. Gal.v.
G/SQ.M
|
Width
|
Wire Gauge (Diameter)
BWG
|
Inch
|
mm
|
Tolerance(mm)
|
3/8"
|
10mm
|
±1.0
|
0.7mm - 145
|
2' - 1M
|
27, 26, 25, 24, 23
|
1/2"
|
13mm
|
±1.5
|
0.7mm - 95
|
2' - 2M
|
25, 24, 23, 22, 21
|
5/8"
|
16mm
|
±2.0
|
0.7mm - 70
|
2' - 2M
|
27, 26, 25, 24, 23, 22
|
3/4"
|
20mm
|
±3.0
|
0.7mm - 55
|
2' - 2M
|
25, 24, 23, 22, 21, 20, 19
|
1"
|
25mm
|
±3.0
|
0.9mm - 55
|
1' - 2M
|
25, 24, 23, 22, 21, 20, 19, 18
|
1-1/4"
|
31mm
|
±4.0
|
0.9mm - 40
|
1' - 2M
|
23, 22, 21, 20, 19, 18
|
1-1/2"
|
40mm
|
±5.0
|
1.0mm - 45
|
1' - 2M
|
23, 22, 21, 20, 19, 18
|
2"
|
50mm
|
±6.0
|
1.2mm - 40
|
1' - 2M
|
23, 22, 21, 20, 19, 18
|
2-1/2"
|
65mm
|
±7.0
|
1.0mm - 30
|
1' - 2M
|
21, 20, 19, 18
|
3"
|
75mm
|
±8.0
|
1.4mm - 30
|
2' - 2M
|
20, 19, 18, 17
|
4"
|
100mm
|
±8.0
|
1.6mm - 30
|
2' - 2M
|
19, 18, 17, 16
|
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as marked separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.
|
PVC Coated Hexagonal Wire Netting
|
Mesh
|
Wire Gauge (MM)
|
Width
|
Inch
|
MM
|
-
|
-
|
1/2"
|
13mm
|
0.6mm - 1.0mm
|
2' - 2M
|
3/4"
|
19mm
|
0.6mm - 1.0mm
|
2' - 2M
|
1"
|
25mm
|
0.7mm - 1.3mm
|
1' - 2M
|
1-1/4"
|
30mm
|
0.85mm - 1.3mm
|
1' - 2M
|
1-1/2"
|
40mm
|
0.85mm - 1.4mm
|
1' - 2M
|
2"
|
50mm
|
1.0mm - 1.4mm
|
1' - 2M
|
