Galvanized Platform Grating-Machine Operation Platform Grating

Name: Galvanized Platform Grating-Machine Operation Platform Grating
Brand: china-manufacturer-directory.com
SKU: 756811205
Availability: InStock
Rating: 4.5 (38 reviews)

Price:	US $ 22-25/Square Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	10/Ton
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	G253/30/100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Carbon Steel, Stainless Steel
Loading Bar Type:	Flat, Serrated, I Type
Surface Treatment:	Mill Finish, Hot DIP Galvanized, Painted
Package:	Steel Belt
Business Type:	Manufacturer
Quality Certificate:	ISO9001
Panel Size:	1m5.8m 1m6m 1m*7m
MOQ:	10tons
Place Of Origin:	Hebei Anping China
Certification:	ISO
Type:	Building Materials

Product Description

mobile 008615122904795

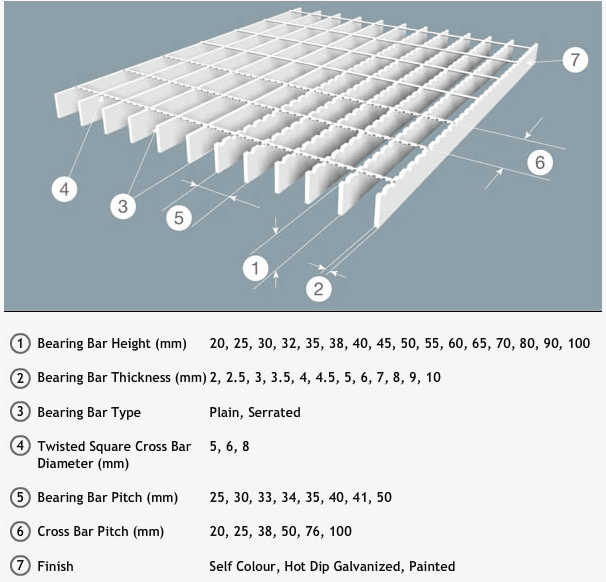

1.what is steel grating ?( steel driveway grates grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

2.steel grating specification- galvanized steel driveway grates grating

panel size available(black grating): 1000x5800mm or 1000x6000mm

Bearing bar pitch	Cross bar pitch	load steel size ( Width ×Thickness)
Bearing bar pitch	Cross bar pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Bearing bar pitch	Cross bar pitch	load steel size (Width ×Thickness)
Bearing bar pitch	Cross bar pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

3. Anping metal walking grates introduction-- galvanized steel driveway grates grating

Bearing bar type	Flat bar	I bar	Serrated bar
Cross bar type	Twisted bar	Round bar	flat bar
Production process	welded	Pressure locked
Surface treatment	Self-colour	Galvanized	painted
application	Platform	walkway&floor	Trench cover	Steel stair treads
	Suspended ceiling	Barrier fence

bearing bar types:

serrated type,flat type,I type

4.steel grating standard-- galvanized catwalk steel grating

Steel Grating Standard
	Steel Grating Standard	Steel Standard	Galvanizing Standard
China Standard	YB/T 4001.1-2007	GB700-88	GB/T13912-2002
USA Standard	ANSI/NAAMM (MBG531)	ASTM (A36)	ASTM (A123)
U.K. Standard	BS4592	BS4360 (43A)	BS729
Australia Standard	AS1657	AS3679	AS1650
Deutsche Standard	DIN24537	DIN17100-80	DIN50976

6 steel grating exporter --- galvanized catwalk steel grating

power station platform grating

port platform floor grating

spray booth floor grating

water channel grating

steel stair treads grating

trench cover grating

6.our company profile

Hebei Jiuwang Metal Wire Mesh Co.,Ltd.(original Anping County Jintai Metal Mesh Co.,Ltd.).Established in 1992,our company is a manufacturer of large steel structure and steel gratings,integrating development,production and distribution.The company register capital is 10,080,000 Yuan,and take an area of 34,680 square meters.In 2003,we have got the ISO9001:2000 certification by BQR.

7.our company activity( new year open in snow, attend economic meeting,dinning with customer,group trour,canton fair show)

7.CHOOSE US BECAUSE WE HAVE

1.Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
2. Over 20 years' experience in hot-dipped galvanizing and 12 years'steel grating manufacture
3. Quality guarantee under the control of ISO9001 2000 quality system
4.Professional technology and design teams, chart as customers' requirements.

Hebei Jiuwang Metal Mesh Manufacture Co., Ltd (BILLION China INTERNATIONAL GROUP) covering 10000 m2 area, , is one of the biggest manufacturer and exporter of Flooring steel grating and stanchions (or rails)in north of China Started from 1992, In Sep. Of 2003, we successfully passed ISO9001: 2000 international quality management system certificate.

Steel gratings are widely used in petroleum, chemical, transport, power, mine, communication, civil construction, rubber, breeding and other industries. 5 production lines makes more than 2000 Tons flooring grating every year, Our Hot-DIP-Galvanized treatment workshop can satisfy 6-10 meters black steel grating.

As for the fine technician of steel grating, grating fence, trench over and stair treads, and Hot-DIP galvanized surface treat, we built good friendship with customers from USA, Europe, Middle East, Japan, Korean, Australia and Canada.

As customer request, we can also offer field fence (grassland fence), T post and Y post for Middle East, America and Australian countries application

We would like to establish good business relationship with our old and new customers on the basis of sincere cooperation and mutual benefit.
