Product Specifications
| Prod Model: |
HW20150507 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Huaxin |
| Wire Gauge: |
0.3mm----4mm |
| Aperture: |
1/2''1'' 3/4'' 2' '3'' 4'' |
| Hole Shape: |
Hexagonal |
| Packaging Detail: |
as The Client Requirement |
| Surface Treatment: |
Galvanized |
| Application: |
Cages for Poultry |
| Weave Method: |
Twist |
| Weave Technique: |
Plain Weave |
| Material: |
Low-Carbon Iron Wire, PVC Coated Steel Wire |
Product Description

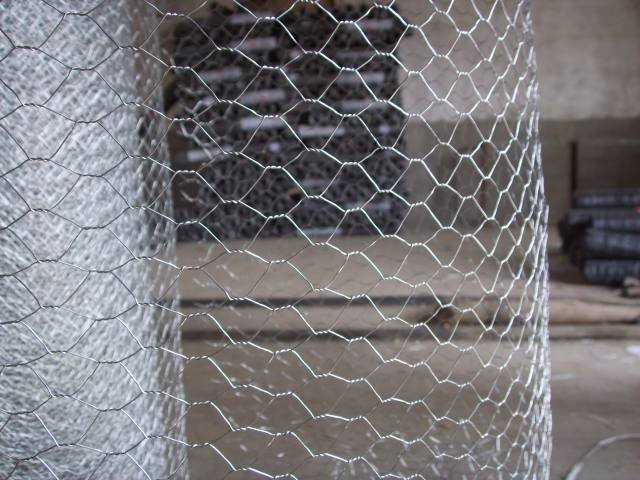

Galvanized hexagonal wire mesh, PVC coated hexagonal wire mesh
1. Twist method of the hexagonal wire mesh:
1. Straight/Reverse twisted, 2. Double-direction Twist
2. Material of the hexagonal wire mesh:
1. Stainless Steel, 2. Low carbon Steel
Types: 1. Galvanized Hexagonal Wire Netting 2. PVC Coated HexagonalWire Netting (Finishing before or after weaving)
3. Packing of the hexagonal wire mesh:
In rolls and then wrapped up with the Black waterproof paper or with tags as request.
4. Application of the hexagonal wire mesh(Chicken Wire netting):
Hexagonal wire netting also named Chicken Wire Netting is designed in various twisted metals including stainless steel, heavy galvanized wire or carbon steel wire. Sizes of chicken wire vary according to the customers' requirements. The hexagonal opening can keep chicken in while allowing big airflow and enabling the feeding easy for the farmers. Hexagonal mesh is very commonly used in feeding of chicken fabricating into baskets, also used as fences for animals. It can be become very firm in structure and has flat surface. The hexagonalwire mesh is also used to protect the animals you breeded. It is extensively used in industrial, agricultural fence, constructions reinforce and breeding fence etc.
| General Specification of Galvanized Hexagonal Wire Netting |
| Mesh | Min. Galv.
G/SQ.M | Width | Wire Gauge (Diameter)
BWG |
| Inch | mm | Tolerance(mm) |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Dingzhou Huaxin Metal Products Co., Ltd. Started construction in 1990, located in the industrial area of Hebei Dingzhou live, convenient transportation, favorable geographical position. 40 kilometers away from Shijiazhuang international airport, 330 km away from Tianjin Tanggu New Port. Has now become a large format and production and sales as one of modern enterprise.
Factory covers an area of 15, 000 m2, special machinery and equipment 100 (sets), worth a total of 15 million yuan of fixed capital, working capital 20 million yuan, 100 employees working, and has many years of experienced technicians, advanced process equipment, First-class management level, with a wire drawing, mesh weaving twist, hot galvanized, electro galvanized, packaging, transport stop the production, management system, the annual output wire Avenue, 18250T, hot DIP wire 1500T, stencilling 9000000m2, annual output value of 8000 Million.
Over the years, we have by virtue of high-quality products, good reputation, quality of service, and many merchants established a stable trade relations, which are widely sold to America, Europe, Africa, the Middle East, Southeast Asia and other countries and regions and won the A wide range of new and old customers praise and trust.
We are willing to work with new and old customers sincere cooperation, the principle of mutual benefit to establish a broad partnership. We look forward to join hands with you! I sincerely welcome friends around the world to our company to negotiate business with each customer is willing to work together to create a better future.
