Product Specifications
| Prod Model: |
CTZ-186 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hole Size: |
1/2" to 3" |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Surface Treatment: |
Galvanized |
| Application: |
Decorative Mesh |
| Color: |
White |
| Type: |
Welded Mesh |
| Certification: |
SGS |
| Condition: |
New |
| Weave Technique: |
Welding |
Product Description
Galvanized welded utility mesh is a most versatile product for all types of farm and home applications. Some of the popular uses are cages, fences, machine and window guards, livestock shade panels, partitions, corn cribs and temporary pens. Galvanized small utility fabric is precision welded with uniform spacing and flush cut stay wires, providing a durable, easy-to-handle fabric

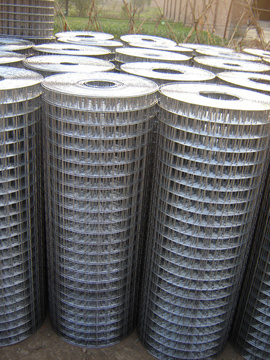

Galvanized welded utility wire mesh
GAW (galvanized after welding) mesh - In this process, the mesh is hot-dipped galvanized after the wire is welded, coating all the weld intersections. GAW welded wire mesh performs well in damp environments and is used in applications such as ventilation screens, animal enclosures, and light duty industrial applications.
GBW (galvanized before welding) mesh - In this process, the wire is coated prior to welding, leaving the welds uncoated. While GBW provides some protection against damp conditions, it is more prone to rust than GAW mesh. It is primarily used for indoor applications such as security screens and guards for machinery.
Opening size, or mesh count, ranging from 1/4" up to 2". Typically the openings of welded mesh are measured from center to center of the wire.
Wire diameters ranging from 0.25mm to 5.0mm in standard configurations. Larger diameter wires are available for custom applications. Wire diameters are measured prior to welding.
Roll sizes up to 1.83M wide and custom panel sizes are available.
Specification List of Welded Wire Mesh
|
Opening
| Wire Diameter
|
In inch
| In metric unit(mm)
|
1/4" x 1/4"
| 6.4mm x 6.4mm
| 22,23,24
|
3/8" x 3/8"
| 10.6mm x 10.6mm
| 19,20,21,22
|
1/2" x 1/2"
| 12.7mm x 12.7mm
| 16,17,18,19,20,21,22,23
|
5/8" x 5/8"
| 16mm x 16mm
| 18,19,20,21,
|
3/4" x 3/4"
| 19.1mm x 19.1mm
| 16,17,18,19,20,21
|
1" x 1/2"
| 25.4mm x 12.7mm
| 16,17,18,19,20,21
|
1-1/2" x 1-1/2"
| 38mm x 38mm
| 14,15,16,17,18,19
|
1" x 2"
| 25.4mm x 50.8mm
| 14,15,16
|
2" x 2"
| 50.8mm x 50.8mm
| 12,13,14,15,16
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
|
Our factory is situated in Anping County which has long been known as Homeland of Wire Mesh in China, Started since 1989, this factory has rich experience in iron wire and wire mesh.
Our hot products and feature products: Galvanized wire, oval galvanized wire and automatic binding wire.
Base on our more than 10 years exporter experienced, we also can supply competitive price for other products:
Wire system: Black annealed wire, galvanized wire, including coil wire, spool wire, and U type tie wire, cutting wire, wire sack ties and so on.
Wire mesh system: Welded wire mesh, hexagonal wire mesh, black woven cloth, stainless steel wire mesh, brass wire mesh and so on.
We would like to win your long term businss by our high quality products and competitive price.
