| Supplier: | HEBEI MAISHI WIRE MESH MANUFACTURE CO., LTD. |
|---|---|
| Price: | US $ 26.99/Roll |
| Min Order: | 5/Roll |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | MS-WWM |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: | Maishi |
| Wire Diameter: | 1.0mm-10.0mm |
| Roll Length: | 15.M,24m,30m,50m |
| Standard Width: | 0.3m-2.5m |
| Product Name: | Galvanized Welded Wire Mesh |
| Material: | Low-Carbon Iron Wire |
| Hole Shape: | Square |
| Application: | Filter |
| Type: | Welded Mesh |
| Certification: | ISO9001 |
| Condition: | New |
| Mesh Size: | 14" ---6" |
| Surface Treatment: | Galvanized/ PVC Coated |
| Weave Technique: | Welded |
| Color: | Silver, Green |
We choose the best low carbon wire or stainless steel wire material available in China.
The high quality & reasonable price product is from the right material.
Electro galvanized before welded wire mesh;
Electro galvanized after welded wire mesh;
Hot-dipped galvanized before welded wire mesh;
Hot-dipped galvanized after welded wire mesh;
Iron/galvanized wire + PVC Coated.
Normal Size for roll:
| Opening | Wire diameter | Width |
| 1/4" x 1/4" | 0.5mm-0.7mm | 300mm-1828mm |
| 3/4" x 3/4" | 0.7mm-2.0mm | 300mm-1828mm |
| 3/8" x 3/8" | 0.7mm-1.1mm | 300mm-1828mm |
| 5/8" x 5/8" | 0.8mm-1.2mm | 300mm-1828mm |
| 1/2" x 1/2" | 0.45mm-1.6 mm | 300mm-1828mm |
| 1" x 1" | 0.7mm-3.0mm | 300mm-2000mm |
| 1" x 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
| 1-1/2" x 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
| 1" x 2" | 1.6mm-2.1mm | 300mm-1828mm |
| 2" x 2" | 0.7mm-4.0mm | 300mm-2500mm |
| 2" x 3" | 1.5mm-3.5mm | 300mm-2000mm |
| 2" x 4" | 2.0mm-4.0mm | 300mm-1828mm |
| 3" x 3" | 1.0mm-4.5mm | 300mm-2500mm |
| 3" x 4" | 1.5mm-4.5mm | 300mm-2000mm |
| 4" x 4" | 1.0mm-4.5mm | 300mm-2500mm |
| 5" x 5" | 2.5mm-4.5mm | 300mm-2500mm |
| 6" x 6" | 2.5mm-4.5mm | 300mm-2500mm |
| Technical Note: 1. Standard roll length: 15.24m,30m,50m. 2. Special sizes available at request. 3. Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| Panel Welded Wire Mesh | ||
| Mesh Size | Wire diameter | |
| In Inch | In MM | MM |
| 1/2" x 1/2" | 12.7mm | 1.0mm-2.0 mm |
| 1" x 1" | 25.4mm | 1.5mm-3.5mm |
| 1" 1/4" | 31.8mm | 2.0mm-4.0mm |
| 1 1/2" | 38.1mm | 2.0mm-5.0mm |
| 2" x 2" | 50.8mm | 2.0mm-6.0mm |
| 3" x 3" | 76.2mm | 3.0mm-7.0mm |
| 4" x 4" | 101.6mm | 3.0mm-8.0mm |
| 5" x 5" | 127.0mm | 4.0mm-9.0mm |
| 6" x 6" | 152.4mm | 4.0mm-10.0mm |
| Panel Width & Length: 3Feet × 6Feet, 4Feet × 8Feet, 5Feet × 106Feet, 1M ×2M, 1.5M × 3M, 2M × 4M Other panel sizes can also be made according to request. | ||
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.

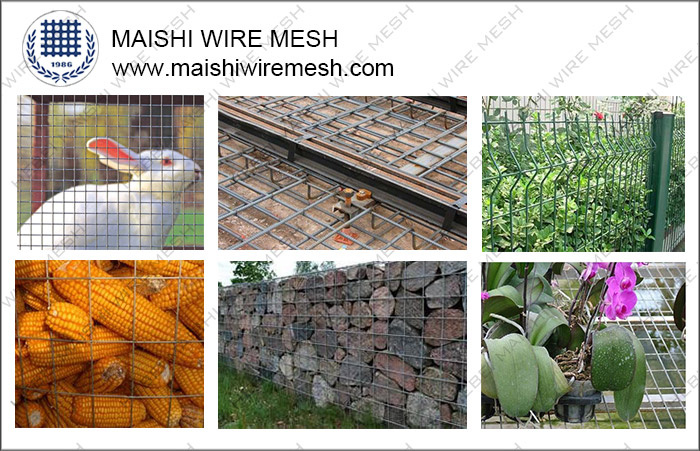

Application
Guarding
Railings
Architectural
Ceiling Tiles
Partition Systems
Farm
6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
