Guangzhou New Zhonglian Building Material Co., Ltd. >> Galvanized Welded Wire Mesh

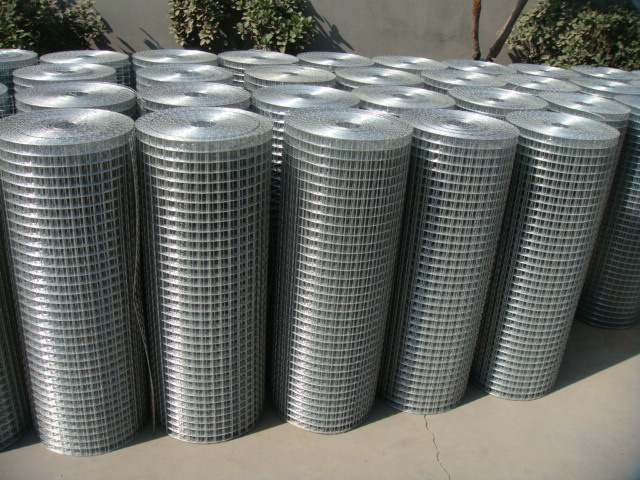

Galvanized Welded Wire Mesh

Name: Galvanized Welded Wire Mesh
Brand: China-Manufacturer-Directory.com
SKU: 771961215
Availability: InStock
Rating: 4.9 (101 reviews)

Supplier:	Guangzhou New Zhonglian Building Material Co., Ltd.
Price:	US $ 400/Ton
Min Order:	5/Ton
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WWM001
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Wire Diameter:	22,23,24
Hole Size:	1/4" X 1/4"
Material:	Low-Carbon Iron Wire
Hole Shape:	Square
Mesh Size:	1/4 Inch
Surface Treatment:	Galvanized
Weave Technique:	Plain Weave
Application:	Decorative Mesh
Color:	Silver
Type:	Welded Mesh
Certification:	SGS
Condition:	New

Product Description

Welded mesh offers high stability, as the longitudinal and cross wires are welded at the crossing points.
Thanks to the variable mesh size and wire diameter, it is possible to use welded mesh in a wide range of industrial sectors.

Materials: mild steel wire, stainless steel wire, galvanized wire.
Weave and features: galvanized after weaving and galvanized before weaving.
Finish: electric galvanizing, hot-dip galvanizing, or pvc-coated.

Application: welded wire mesh with excellent corrosion resistance and oxidation resistance extensively used
fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request

PVC Coated Welded Mesh:
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
