Product Specifications
| Prod Model: |
CH1A02 |
| Markets: |
North America,South America,Southeast Asia,Mid East |
| Type: |
Military Vessels |
| Material: |
Iron and Steel |
| Marine Parts: |
Symb. |
| Engine Type: |
Inboard |
Product Description

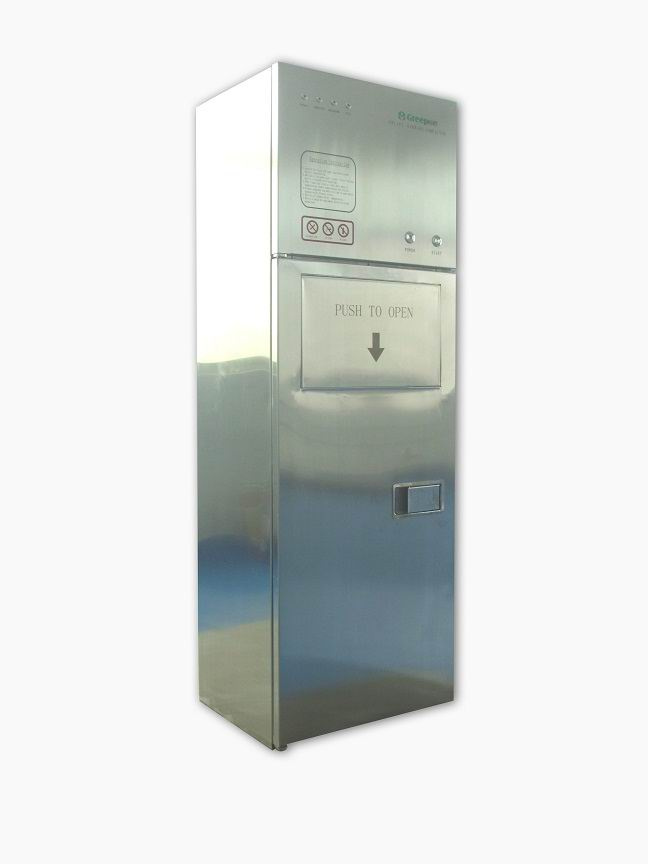

Model CH1A02 Garbage compactor for ships
Using occasions
Widely used various types of ships, offshore platform etc
Technical parameters
Dimensions(HxWxL): 1467x500x450mm
Volume of working chamber(approximation):0.085m3
Volume of Trash bin(approximation): 0.050m3
Compressed trash bulk(approximation):0.051m3
Compression power:800kg
Daily processing capability :3000kg
Compression working cycle:40s
Maximum volume compression ratio:10: 1
Power requirement:AC220V/7A/60Hz
Power consumption:0.001Kw/time
Safety testing:Transducer
Leakage Protection :Have
Ozone concentration:0.3mg/m3
Material of Outer Case:304
Warning:Ringing and indicator light
Insulation resistance:Have
Desd weight of the equipment(approximation):165kg
