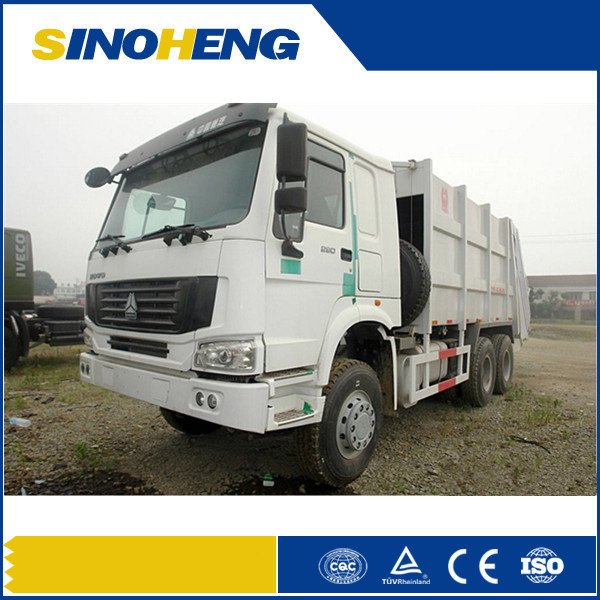

Garbage Compressed Truck for Garbage Collection

Name: Garbage Compressed Truck for Garbage Collection
Brand: China-Manufacturer-Directory.com
SKU: 700784312
Availability: InStock
Rating: 4.8 (33 reviews)

Supplier:	Jinan Sinoheng Import and Export Co., Ltd.
Price:	US $ 45000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JHL5250ZYS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8325X2490X3500mm
Tank Capacity:	16cbm
Gross Vehicle Weight:	25000kg
Loading Capacity Of Collection Tank:	2cbm
Cycle Time For Garbage Loading:	20s
System Working Pressure:	21MPa
Cycle Time For Garbage Unloading:	45s
Max. Pushing Force:	150kn
Compression Force:	400kn
Color:	Red, Withe, Green, Blue, Yellow
Type:	Compactor
Certification:	CE
Volume:	＞15000L
Emission Standard:	Euro 2
Transmission Type:	Manual
Engine Type:	4 Stroke
Payload:	20T
Fuel:	Diesel
Drive Wheel:	6?á4
Condition:	New
Brand:	Sinotruk
Chassis:	Zz3257m3247c

Product Description

Properties and Applications:
Compressed garbage truck is produced by using Germany technology, and has outstanding techniical advantage. The product has high system pressure, large compression force, high volume rate and large loading capacity, can make loading capacity increase 5-7 times, has high automatic degrees, quick loading speed, covenient, safe and reliable operation, and hasn't secondary pollution. The product is suitable for collection and transportation of urban living garbage, industrial and commercial non-toxic garbage. New developed compartment removable compressed garbage truck uses compartment and truck separation, is equipped with several compartment for one truck, and can be used as small garbage transfer station.

Model	JHL5250ZYS
Chassis model	ZZ3257M3247C
Driving form	6x4
Total mass(kg)	25000
Curb weight(kg)	14540
Engine	WD615.87(290HP), Euro II emission standard Engine type: Diesel 4stroke direct injection engine, 6cylinder inline with water cooling, turbo-charging & inter cooling
Cab	HW76(one bed with A/C)
Transmission	HW15710(10 Forward, 2 Revise)
Front axle	HF7 (7000kg)
Driving axle	HC16 (16000kg x 2)
Steering system	ZF8098
Tire	12.00R20 (11pcs, including one spare tire)
Wheelbase(mm)	3250+1350
Front/rear Overhang (mm)	1500 / 2250
Approach/departure angle(°)	19 / 14
Maximum speed(km/h)	75
Number of spring leaf	10/12
