Product Specifications
| Prod Model: |
GCTS-10.0 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Processing Methods: |
Physics |
| Pullution Sources: |
Air Pollution Control |
Product Description

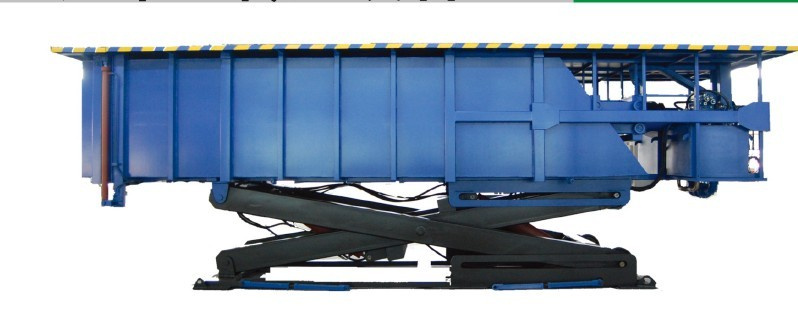

Horizontally lifting compression garbage transfer stationIt is applicable to collect and transfer the wastes from residential subdistrict, beauty spot, parks, factories, squares, schools, hospitals, wholesale markets, sanitation departments and shopping malls(supermarkets) etc.
Technical feature:
1. It is a underground rubbish compression transfer equipment developed by full hydraulic driveTechnology, the hydraulic system drives the compressing and automatically loading of theGarbage, which is not only increase the transshipments and improve transferring efficiency butAlso cost-savings in transshipments, fuel cost and vehicle lost ect.
2. This equipment is mainly composed of compression box, compression mechanism, hoisting mechanism, gate mechanism, hydraulic system, electrical control system, sewerage system and flushing system.
3. The whole equipment is placed underground when in operation, the upper plane of garbage canIs almost in parallel with the ground and the feeding inlet parallels with the ground so as toConveniently clean the residual garbage and beautify cities. The biggest advantage is withoutBuildings support, the loading platform itself could act as a handling garbage container, it keepsThe rain so that particularly suits to garbage processing near grass lawn, nice appearanceReconcile with surrounding environment.
Technical Parameter:
|
Product name |
GCTS-6.5 |
GCTS-6.5 |
|
Dimension of waste block |
2.8X1.8X1.3 |
4X1.95X1.38 |
|
Floor area of equipment |
6.47X2.3 |
8.53X2.66 |
|
External dimension |
6.47X2.3X2.55 |
8.53X2.66X2.93 |
|
Max compressive force |
500KN |
650KN |
|
Rated working pressure of hydralic system |
16MPa |
21MPa |
|
Garbage density |
≥ 0.8t/m3 |
≥ 0.8t/m3 |
|
Max width of box joint |
≥ 2000mm |
≥ 2000mm |
|
Rated lifting height |
≥ 2.8m |
≥ 3m |
|
Working voltage |
380V |
380V |
|
Motor power |
11KW |
18.5KW |
|
Total weight |
8000Kg |
12800Kg |
|
Loading Capacity |
5000Kg |
8000Kg |
Hubei Eguard Environmental Equipment Co., Ltd is invested by the listed company - Sound Environmental Resources Co., Ltd in Xianning Yangtze River Industrial Park. It's a modern equipment research and development, design and manufacturing base for environmental resources.
Eguard is located on the convergence of Jingui road and Shutai road in Yangtze River Industry Park. Total investment is 456 million yuan (equal to US dollar 73 million) and vovers an area of 561 acres (374000 square meters). The expected annual output is more than 300 sets environmental protection equipments. And the annual sales income of 680 million yuan, total profit is 120 million yuan. The company's main business scope: Solid waste treatment equipment, renewable resources, recycling, treatment
