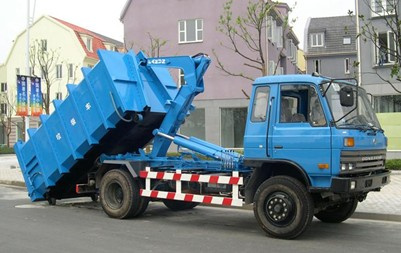

Hooklift Truck/hook loader/self loading unloading truck
Garbage bucket can be characterized by hanging from the crane, the arm, a working cycle time: 60S. The car is characterized by separate cargo compartment with the body, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.
Private Function Description:
Envelope materialGarbage trucks can be used: Carbon steel, stainless steel, epoxy anti-corrosion treatment taken internally
Car-typeJunk cars varies depending on the model shape
Scope of useWidely used for small-scale garbage truck waste management and city streets, all with the dump functions, hydraulic operation, dumping easy.
Seal FormsSeal in the form of garbage trucks can choose: All sealed, on the clamshell, slide-type form are sealed to prevent secondary pollution, open the roof may take the form, please choose a user according to their different types of garbage trucks
Main technical parameters |
Model |
Dongfeng Garbage Truck |
Dimension |
7200×2495×3350 (mm) |
Chassis type |
EQ1108KJ |
Cargo body size |
×× (mm) |
Total mass |
10495 (kg) |
Appearance/departure angle |
25/15 (°) |
Rated payload |
4000 (kg) |
F/R suspension |
1205/2045 (mm) |
Kerb weight |
6300 (kg) |
Maximum speed |
90 (km/h) |
Engine |
ISBE185 30 ISDe160 30 ISDe180 30 ISDe185 30 |
Displacement |
5900 4500 4500 6700 (ml |
Power |
136 118 132 136 (kw) |
Manufacturer |
Dongfeng Cummins Engine Co., Ltd. |
Emission standard |
GB3847-2005, GB17691-2005 |
Number of the axles |
2 |
Front tread |
1900 (mm) |
Wheel base |
3950 (mm) |
Rear tread |
1800 (mm) |
Number of the tires |
6 |
Tire type |
9.00-20, 9.00R20 |
Fuel type |
Diesel |
Number of the springs |
8/10+7 |
Axle load |
3500/6995 |
Cab Passengers |
3 |
