Product Specifications
| Prod Model: |
Q38 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Puhua |
| Steel Shot Blasting Machine Color: |
According to Your Requirement |
| Industry Used: |
Motor Vehicles, Diesel Engines, etc |
| Blasting Media: |
Steel Shot |
| Blast Wheel: |
High Chromium Wear Resistant |
| Wear Parts: |
High Chrome, Zgmn13, etc |
| Dimension(L*W*H): |
Customized |
| Industrial Experience: |
Over 20 Years Professional Design Experience |
| Dust Collector: |
Cartridge Filters / Bag Type |
| Warranty: |
One Year (Except Wearing Parts) |
| Application: |
Metal Cleaning, Derusting |
Product Description

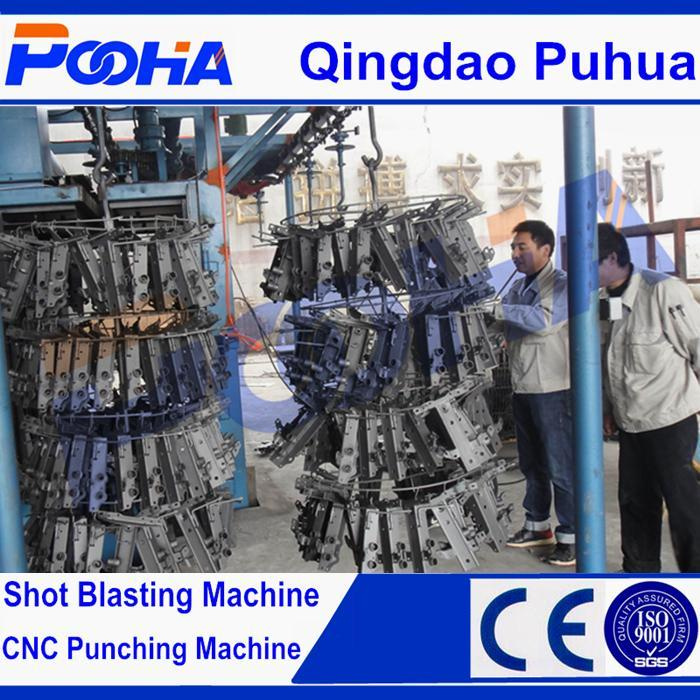

Gas cylinder clean shot blasting machine
FAQ
1. How to confirm the machine type we need?
Let us know the workpiece type, then we can select the suitable machine for you. Better send some photos to us.
2. How to confirm the machine size?
Let us know the max. & min. dimension of your workpiece, we can design best machine for you to complete your work and reduce the investment money.
3. How many processing parts per 8 hours?
According to your productivity requirement, we adjust and design suitable capacity machine for you.
4. What is the lead time of shot blasting machine?
For standard machine, usually we have stock in factory.
Big machine, the lead time is usually 25 to 40 days.
5. The machine will be tested before shipping?
Yes, all of our machines are tested before shipment.
6. What's your quality guarantee?
Quality guarantee time is one year after installation.
7. Are you able to give Installation and commissioning overseas? How long will it take?
Yes, we supply overseas service, but customer need to pay for the engineers flight tickets, hotel, food, etc.
Small machine usually takes 5 to 7 days.
Big machine usually takes 20-60 days.
Product description:
| 1. The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of high efficiency, compact structure and no pit. |
| 2. Workpieces can be transported continuously. The working procedure is that, setting the speed, hanging workpieces over the hooks, and removing them after shot cleaning . |
| 3. Every single hook can hang weight from 50 to 2000 kgs with high productivity and stable running. |
| 4. It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing. |
| 5. It is an ideal choice for auto, tractor, diesel engine, motor and valve industry. |
Technical parameter:
Item |
Continuous moving type |
Step moving type |
Continuous moving type |
Q383 |
Q384 |
Q483 |
Q4810 |
Q583 |
Q5810 |
Productivity |
Hook/h |
38-50 |
60-120 |
20 |
40-60 |
40 |
40 |
Lifting weight |
Kg/hook |
300 |
400 |
300 |
1000 |
300 |
1000 |
Max. Workpiece
Size |
mm |
Φ(500-700)
*1600 |
Φ(500-850)
*1900 |
Φ(500-900)
*1600 |
Φ(600-1300)*1900 |
Φ(400-800)*1600 |
Φ(400-1200)*2200 |
Abrasive flow rate |
kg/min |
4*250 |
6*250 |
2*250 |
6*250 |
4*250 |
6*360 |
Cleaning space
size |
Mm |
5000*2200
*2600 |
6000*2600
*3000 |
2900*1800
*3200 |
3050*2600
*3000 |
3200*2200
*2800 |
3200*2800
*3800 |
Speed of chain |
m/min |
0.35-3 |
0.35-3 |
3-8 |
3-8 |
0.8-3 |
0.8-3 |
Lifting distance of
pendant chain |
mm |
600-800 |
600-100 |
600-1000 |
700-1400 |
500-900 |
500-1300 |
Ventilation capacity |
M3/h |
10480 |
14500 |
5000 |
14500 |
10480 |
18000 |
Power |
kw |
83 |
131.7 |
52.8 |
114.7 |
83.5 |
188 |
Outline dimension
of shot blasting
machine |
mm |
11810*3200
*7250 |
15300*3700
*7700 |
11450*3100
*6450 |
9450*3700
*7700 |
13250*3400
*7250 |
17700*6615
*8300 |
Our Service:
1 |
Reply your inquiry in 24 hours. |
2 |
Experienced staffs answer all your questions in time. |
3 |
Customized design is available. |
4 |
Exclusive and unique solution can be provided to our customer by
our professional engineers and staff. |
5 |
Special discount and protection of sales are provided to our distributor. |
6 |
We are professional manufacturer of shot blasting Machine. Have a professional design team
with more than 10 years design experience engineers, competitive with good quality |
7 |
As an honest seller, we always use superior raw material, advanced machines, skilled technicians
to ensure our products to be finished in high quality and stable feature. |
8 |
Prompt delivery, site installation and commissioning. |
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP, Turnkey, etc.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
Warmly welcome you to visit our factory in Qingdao China.
