Product Specifications
| Prod Model: |
FS1022; FS1015 |
Product Description
The products:

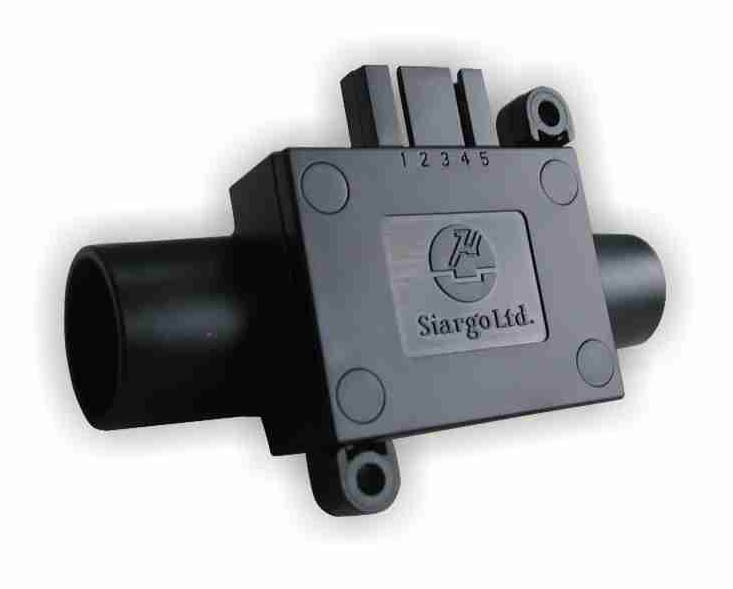

FS1015 Series are specially designed for medical equipment flow monitor and control applications, and are made with Siargo's world leading proprietary MEMS mass flow sensors and the smart electronic control system. The sensors directly measure mass flow in the designed channel with a low pressure loss. The current models can be readily applied to ventilators and anesthesia equipments. These sensors can also be sterilized in medical liquids for resue or hygienic purposes.
FS1015 series can measure a flow up to 150 SLPM. This model is readily applicable to ventilators and/or anesthesia equipments. All sensors have an ISO-medical connector with an accuracy of +/-1.5%.
Features and Applications:
-MEMS Thermal mass flow sensor
-Excellent rangeability with integrated multiple sensing elements
-High stability at null and full scale
-Fast response
-Low power consumption
-Low pressure loss
-ISO standard medical connector
Specifications
-Flow range: 0~100; 0~150 SLPM
-Accuracy: +/-(1.5+0.2FS)%
-Repeatability: +/-0.75%
-Response time: 8(Max. ) msec
-Power Supply: 5+/-1% Vdc
-Output: Linear; Analog 0.5~4.5Vdc
-Pressure Drop (Max. ) 1300 Pa
-Max. Working Pressure: -10~+55C
-Storage Temperature: -20~+55C
-Humidity: <95%RH (No icing or condensation)
-Connection: ISO-15mm
Siargo specializes MEMS flow sensing technology and manufactures MEMS flow sensors, modules, and system products that are shipped worldwide. Our global technical team is working 24/7 and ready to provide timely solutions to your even very special requirements.
Our flow system technology and know-hows excel many existing technologies for flow measurements. We are committed to meet your needs and offer you value-added features at a very competitive price.
Achieved by our proprietary MEMS integration and package technology, the sensors can measure any gas flow in a pipe diameter from 0.5 mm up to 2 m and with a flow speed from 5 mm/sec up to 75 m/sec without sacrificing measurement accuracy.
Our products have been deployed to utility gas metering, medical gas sensing, food, and pharmaceutical industry gas management, environmental, and analytical instrumentation, to name just a few.
We are ISO9001: 2000 certified and we strictly implement the quality management requirements at every single step of our manufacture process.
Our mission is to provide the complete solutions to our customers' very needs in their flow measurement requirements and/or relevant application development needs with our world leading MEMS flow sensing technology, system integration, and 24/7 customer services. Through the years, our worldwide technical supports teamed with our R&D group have been working with many of our customers till their full satisfaction.
Armed with our MEMS sensor development facility and our dedicated package development team, we are committed to the fast responses to our customers' requests beyond our current products' capability by tailoring the sensor architecture, the electronics functionality, and the package configuration.
We are also readily to collaborate with OEM customers to develop the customer configured and cost effective mass flow sensing products in a high volume. Depending on the specific requirements, we have world tier-one manufacture partners who can provide the best ever products with excellent reliability and quality. Examples are methanol concentration sensors for fuel cell applications, gas flow speed monitor in HVAC applications, and compressed air flow monitor and control network in plastic process and manufacture.
