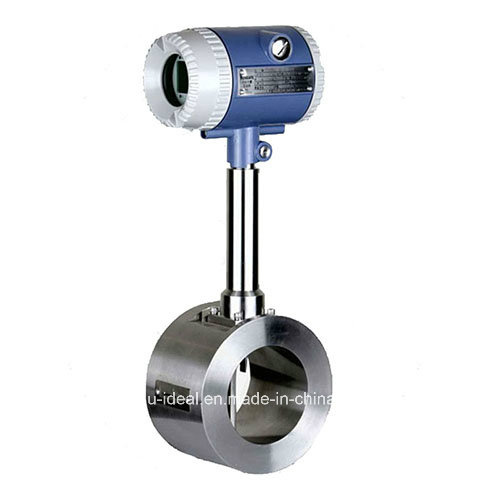

Gas or Steam Mass Flow Meter-Volumn Vortex Flow Meters

Product Specifications

Prod Model:	LUGB-A/B/C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection:	Wafer or Flange
Flow Indicating:	Mass Flow and Volume Flow
Power:	24V, 220V, Battery
Compensation Model Mass Flow Meter LCD:	Mass Transient Flow, Mass Total Flow
Compensation Selection:	Temperature and Pressure
Volumn Flow LCD Display:	Transient Flow and Accumulated Flow
Accuracy:	?à0.6-1%
Main Application:	Corrosive Liquid/Gas
Sensor:	Tube/Flange
Type:	Vortex Flow Meter
Size:	Dn15~500 (1/2~20inches)
Measuring Media:	Liquids, Steam, Gases
Measuring Principle:	Velocity

Product Description

Tianjin U-ideal Instrument Co., Ltd are one of the repute's manufactures and flow meter supplier in China in produce the level gauges and flow meters. mainly used to measure flow of steam.
Summary:
With on-site display function, Can be connected into the internal or external sensor and integrated to flow meter with temperature, pressure compensation function, With HART protocol advanced features. Intelligent circuit according to the characteristics of vortex sensor, the detection and closely integrated totalizer. The use of sophisticated low-power 128 × 64 full DOT matrix LCD display, local display instantaneous flow and total flow, and measuring the temperature and pressure compensation, display data-rich and intuitive. Common operating principle set the menu, and prompts the use of English letter, clear and intuitive, easy to operate.






Electromagnetic flowmeter




1. LZ-A type local indicating with pointer metal rote meter


Our flow meters are calibrated by special testbed, can assure you good accuracy.
Our flowmeter are done with actual good material, don't mix any bad matrial.

WE do those all hope have long business relationship with you.




2. Vortex precession flowmeter
Vortex precession flowmeter for measuring volumetric flow, temperature, pressure, density, and mass flow using a single meter
Ø Measures most gases, liquids and steam without the need to recalibrate
Ø Cost effective, accurate and reliable meter for volumetric and mass flow measurement
Ø Remote monitoring and integration to DCS using HARTand Modbus communication protocols
Ø Ideal for high temperature and high velocity steam
Ø Power Generation steam applications
Ø Industrial HVAC, district energy management
Ø Commercial building, campus and facility energy management
Ø Oil & gas location of natural gas


3. Electromagnetic Flow Meter

Electromagnetic flowmeter is a kind of high performance, high reliability of the flowmeter. Widely used in petroleum, chemical to measure water, sewage, acid, alkali, salt solution or volume flow of liquid-solid two-phase fluid conductive medium.



4. Coriolis Mass flow meter

Measuring the Mass flow rate + volume flow rate + density measurement +temperature measurement +calculated variables (e.g. fluid concentrations) at the same time.

Application:  liquid and gas mass flow measurement.


5. Oval gear flowmeter


Oval Gear Positive Displacement Flowmeters
Oval wheel flow-meters(High Viscosity Oval Gear Flowmeters)
Mechanical fuel flow meter & Oil oval flow meter & oval gear flow meter

Oval Gear positive displacement meters, which are ideal for highly viscous liquids in applications where accuracy and repeatability are critical.

6. Ultrasonic flowmeter

Ultrasonic flow meter is designed to measure the velocity of liquid within a closed conduit. It uses the well-known transit-time measurement principle, plus our proprietary signal processing and ultrasonic transcribing technologies.

7. Swirl Flow Meter

As the vortex flow meter, the swirl flow meter is based on the principle of frequency measurement. The system has a freely configurable, LCD display for the actual flow rate and tantalization. Settings can be changed directly via 3 push buttons. Additional to the 4-20mA analog signal a freely configurable switching output is already available. This can be used universally as pulse output, high-low alarms or for system supervision. Swirl flow meter is available as compact for remote design with 10 m length cable.

Built-in pressure, temperature, flow sensors, security, high performance, compact structure, beautiful shape.

8. Sight Glass flow Meter

The cheap flow meter which measure and indicate the flow rate directly.

Application: liquid and air flow rate measurement.

Our other related products: level gauges, flow meters, pressure transmitters, indicators, industrial system.
Welcome to contact if have enquiry.

Turbine flowmeter  diameter and connection	4,6,10,15,20,25,32,40 apply thread connection
	(15,20,25,32,40)50,65,80,100,125,150,200 apply flange connection
Accuracy class	±1%R,±0.5%
Measuring scale ratio	1:10;1:15;1:20
Material	304 stainless steel,316(L)stainless steel and others
Fluid temperature	-120~+120ºC
Environment	Temperature-10~+55ºC,relative humidity5%~90%,air pressure86~106Kpa
Output signal	Impulse signal,low level≤0.8V high level ≥8V
Power supply	+12VDC,+24VDC(selective)
Signal transmission line	STVPV3*0.3(Three line system)or 2*0.3(2-line system)
Transmission distant	≤1000m
Signal wire connection	Inner thread M20*1.5
Explosion proof class	ExdIIBT6
Protection class	IP65



	Oval Gear Flowmeter Precision:<±0.5% Material: cast steel/stainless steel/cast iron Optional: Pulse output; reset function NP:1.6Mpa/2.5Mpa/4Mpa Temperature:-40~+160ºC
	Rotary Piston Flowmeter Wide Flux---:1L/H-16000L/H Optimized structure---: No flow adjustment is required. Measuring Medium---: Petro, Diesel oil, Diesel oil, Distilled water, Juice, Chemical reagent etc. Safety---:Flow through the meter continues even when piston was stuck by    impurity. High precision: Up to 0.3% Self-lubricant, high precision, high reliability, low noise, smooth running, easy maintenance
	Wet-test(drum-type) gas meter Applications & User Benefits Wet-test (drum-type) gas flow meters are used universally to measure and record gas volume and gas flow rate for many industrial, petroleum and chemical processes; environmental; pilot plant or test; controlled chamber; laboratory and research applications. Wet-test meters consistently provide the highest accuracy and precision even at the lowest gas flows with inert or the most aggressive gases
	Liquid roots flow meter Accuracy: ±0.5%;±0.2% Material : cast steel/stainless steel/cast iron Optional: pulse output; reset function Normal pressure:1.6Mpa/0.6Mpa Temperature:-10~+60 ºC Rotors never touch each other and therefore are not subject to wear. More over double case construction allows to maintain the measuring unit Without removing the entire PD flowmeter form the line.
	E-F Double rotator flow meter Applies to low viscosity oil, light oil, heavy oil, crude oil with sand and water, liquid from low viscosity to high viscosity. Max. flow is 2 times larger than normal flowmeter. Long life, high accuracy and reliability. Minimal pressure loss. 1000 meters of cable for long distance output. pulse output N=0.1L(a pulse for 1N), for direct connection with computer networking. An explosion of the Ia II CT6(intrinsic safety type); flameproof d II BT6(flameproof); protection IP56.
