Product Specifications
| Prod Model: |
HS170 |
| Markets: |
North America,South America,Africa,Oceania,Mid East,Western Europe |
| Fuel: |
Gasoline Engine |
Product Description

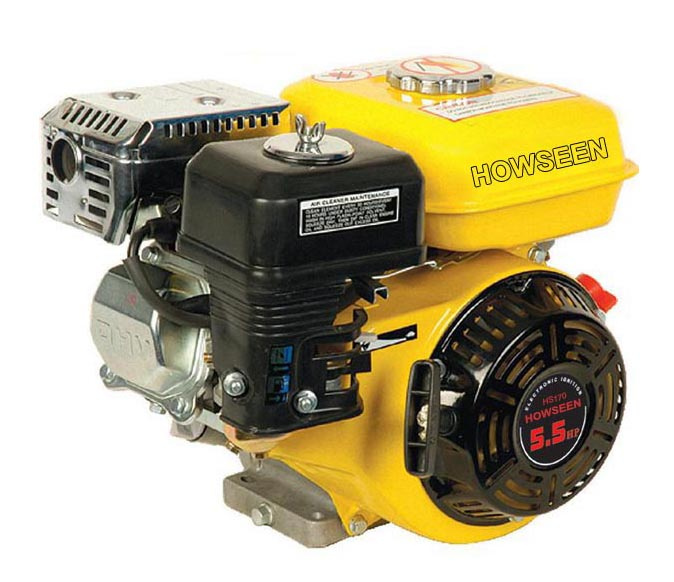

Art. Name: Gasoline engine
Item number: HS170
Certificate: TUV CE/EMC
Engine type: 4-stroke OHV, single cylinder, air-cooled
Output shaft type: Horizontal
Bore X stroke: 68X45mm or 70X45mm (optional)
Displacement: 163cc or 173cc
Max. Output: 5.5HP/3600rpm or 5.7HP/3600rpm
Max. Torque: 1.1N. M/2500rpm
Compression ratio: 8.5: 1
Air cleaner: Semi-dry, oil bath
Ignition system: Non-contact transistorized ignition(TCI)
Starting system: Recoil start
Fuel consumption: ≤ 395g/kw. H
Fuel tank capacity: 3.6L
Oil tank capacity: 0.6L
Overall dimension: 360X310X335mm
Packing: Brown carton or colour box (optional)
Qty: 1PC/carton
N. W. /G. W.: 15/17kgs
Carton size: 390X340X350mm
Loading quantity: 594PCS/20'GP, 1200PCS/40'GP, 1400PCS/40HC
We are a professtional manufacturer and trading company, located in the second biggest seaport city - Ningbo, Zhejiang province, China.
We specialize in top quality general engines, generators and water pumps as well as related accessories.
Our products have been approved by CE, EPA, CARB, Canana CSA. The markets we serve are Europe, America, Middle East, Africa, Australia, etc.
Following the principle of "Quality first, Reputation first, Service first and Mutual benefits", we sincerely welcome new and old customers throughout the world to cooperate with us for a prosperous future.
