GDGK-307 Multi-functional Vacuum Switch Circuit Breaker Analyzer
I. General Introduction

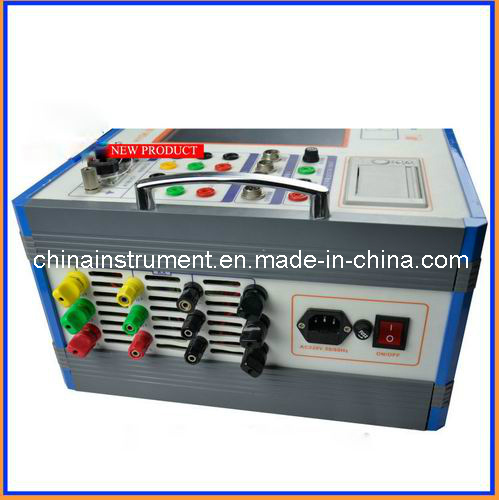

GDGK-307 Circuit Breaker Analyzer is special instrument for power system GIS mechanical properties measuring. The instrument takes IPC for the core to sample and data process. It has 12.1 LCD to display and 12.1 touch pad for operation. Rich experience database makes the tester more intelligence. The tester has the characteristic of accurate test data, strong anti-jamming, easy operation, small size and light weight.
II. Functions
1. Measure opening and closing time, synchronism performance, bounce time and bounce times of common and graphite GIS.
2. Measure distance, average speed and instantaneous speed of on and off of common and graphite GIS.
3. Finish test of continuous on and off of common and graphite GIS.
4. Measure coil current of common and graphite GIS.
5. Draw GIS state-time curve, current-time curve, distance-time curve and speed-distance curve.
6. Show 12 GIS port status of common and graphite GIS.
III. Technique Index
Time Measuring
| No. | Name | Parameter |
| 1 | Time measurement range | 400ms |
| 2 | Resolution | 0.1ms |
| 3 | Error | <0.2ms |
?Speed Measurement
| 1 | Speed measurement range | 2m/s |
| 2 | Resolution | 0.01m/s |
| 3 | Error | <0.1ms |
| 4 | Speed measurement range | 20m/s |
| 5 | Resolution | 0.01m/s |
| 6 | Error | <0.2ms |
?Travel Measurement
| 1 | Travel measurement range | 50.0mm |
| 2 | Resolution | 0.1mm |
| 3 | Error | <1%RDG+0.1%FS |
| 4 | Travel measurement range | 300.0mm |
| 5 | Resolution | 1mm |
| 6 | Error | <1%RDG+0.1%FS |
| 7 | Travel measurement range | 600.0mm |
| 8 | Resolution | 1mm |
| 9 | Error | <1%RDG+0.1%FS |
?Coil Current Measurement
| Coil current measurement range | 20.00A |
| Resolution | 0.01A |
| Error | 2%RDG+0.2%FS |
? Closing Resistance Value Measurement
| 1 | Closing resistance value measurement range | 100~10000ohms |
| 2 | Error | 5%RDG |
? Others
| 1 | DC Power output | DC30V~250V/20A | Instantaneous |
| 2 | Power Supply | AC220V±10% 50Hz/60Hz |
|
| 3 | Temperature | 0~50°c |
|
| 4 | Humidity | <85% |
|
| 5 | Dimension | 360×280×300mm |
|
| 6 | Weight | 10kg |
