Product Specifications
| Prod Model: |
GDVA-402 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Current Transformer Transformation Ratio Tester |
| Warranty: |
12 Month |
| Service: |
Engineers Available to Service Machinery Overseas |
| Other: |
Free Installation and Debugging, Staff Training, T |
| Display: |
Digital |
| Application: |
Electric Power |
| Installation: |
General Installation Meter |
| Theory: |
Electronic Meter |
| Kind: |
Thermocouple Type |
| Power Source: |
AC Meter |
Product Description

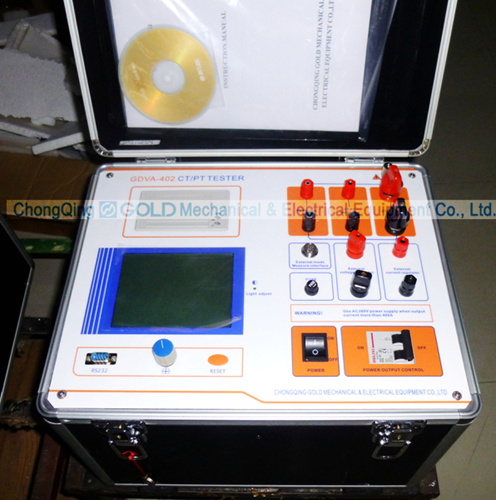

GDVA-402 Digital Current Transformer & Potential Transformer Tester
I Brief Introduction
GDVA-402CT/PT tester is a specialtester for testing characteristic of CT and PT. The
Tester can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere
Feature curve drawing and CT error drawing. It has large output, high
Precision, stable performance and automatic testing.
II Product Function
1 CT/PT transformation ratio test
2 CT /PT polarity test
3 CT /PT volt-ampere feature curve measurement
4 CT ratio error measurement
5 Error curve measurement
6 Result print
7Unload data to PC
8 PC online test.
III After-sales Service
1. Warranty: One year
2. Engineers available to service machinery overseas
3. Provide free installation and debugging, staff training, technical guidance
|
|
Input voltage |
Output scope |
Measuring scope |
Measuring degree |
|
Device main engine |
220V |
0~600V,0~20A |
0~600V,0~20A |
0.5% |
|
380V |
0~1000V,0~20A |
0~1000V,0~20A |
0.5% |
|
220V |
0~600A |
0~600A |
Transformation ratio measuring precision 1% |
|
External voltage raising machine |
220V |
0~1650V,0~3A |
0~1650V,0~3A |
0.5% |
|
380V |
0~2000V,0~3A |
0~2000V,0~3A |
0.5% |
|
External current raising machine |
220V |
0~1000A |
0~1000A |
Transformation ratio measuring precision 1% |
|
External voltage adjustment machine |
|
|
0~1000V,0~30A |
0.5% |
|
Device working power |
AC 220V/380V 50HZ |
External dimensions |
420×330×320mm3 |
Weight |
24kg |
