Product Specifications
Product Description
Shanghai Aolong machine tool Co., Ltd has found in 1993, have large scale machine tool manufacture, specialized in producing gear hobbing machine and spline shaft milling machine, we supply these machines at the highest quality and most competete, lowest price.
Features:

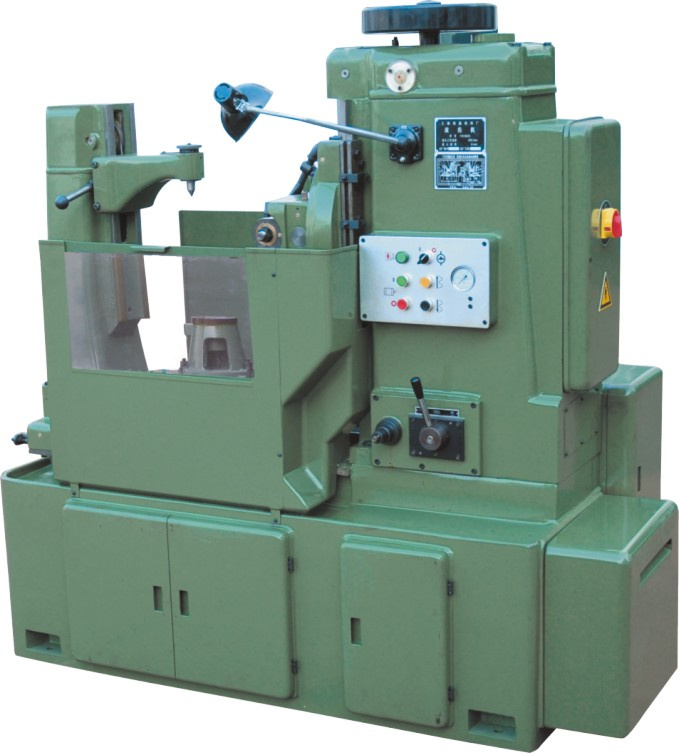

A. )This machine tool is special machining equipment for cylindrical gear, may process straight tooth, slewed tooth, cylindrical gear, worm wheel, chain wheel etc.
B. )The machine tool has compact structure, good rigidity, reliable work and stable precision, allows down milling or up milling, axial or radial machining.,
C. )The machine tool is equipped with tool rest quick shifter and operating mechanism for automatic stop when cutting is ended, easy to operate, suitable for batch production, one person may operate several machines.
D. )Retrofittable shaft numerical control device may realize semi-automatic operation, Hydraulic center could clamp automatically, relieve force, speed up frequency modulation for replacement of workpieces to increase production efficiency.
| Description | Parameter |
| Max workpiece dia. with/without stay | 350mm/500mm |
| Max modulus of workpiece | steel: 5mm cast iron: 6mm |
| Max cutting length | 240mm |
| Distance between tool centre and worktable axis | 25-320mm |
| Min distance from work top to cutting arbor | 170mm |
| Max size of hob Dia. | 120mm |
| Speed spindle of steps/feeds | steps: 8, 50-275r/min |
| Vertical feed amount of the hob | 0.24-5.25mm/min |
| Main motor power | 3.12KW |
| Packing case Dimension(L*W*H) | 1825*935*1730mm |
| Net weight | 2400kg |
Shanghai Aolong Machine Tool Co., Ltd., has been founded in 1993. Owning several tens year of processing experience and using, maintenance, refitting, knowing of Varity of gears home and abroad, so we has changed the gear processibleequipment. In the process of design and fabricationto the gear-hobbing machine, we have entered several tens years of experience to improve on the maincomponent which us easy to damage and to affect treatingefficiency. We believe that consumers' hobbing machine and spline milling machine is "the most reliable, the most efficient, the most economical".
