Product Specifications
| Prod Model: |
12v 120ah |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Gel Battery Long Cycle Life Battery for Solar Powe |
| Standar: |
CE, UL, RoHS, ISO9001 |
| Color: |
Customer |
| Size: |
407*174*240mm |
| Types: |
VRLA Lead Acid Battery |
| Weight: |
38kg |
| Brand: |
Hiload |
| Using Temperature: |
15°c - 25°c |
| Plate: |
Lead-Antimony |
| Battery Case: |
PP Case |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
Product Description

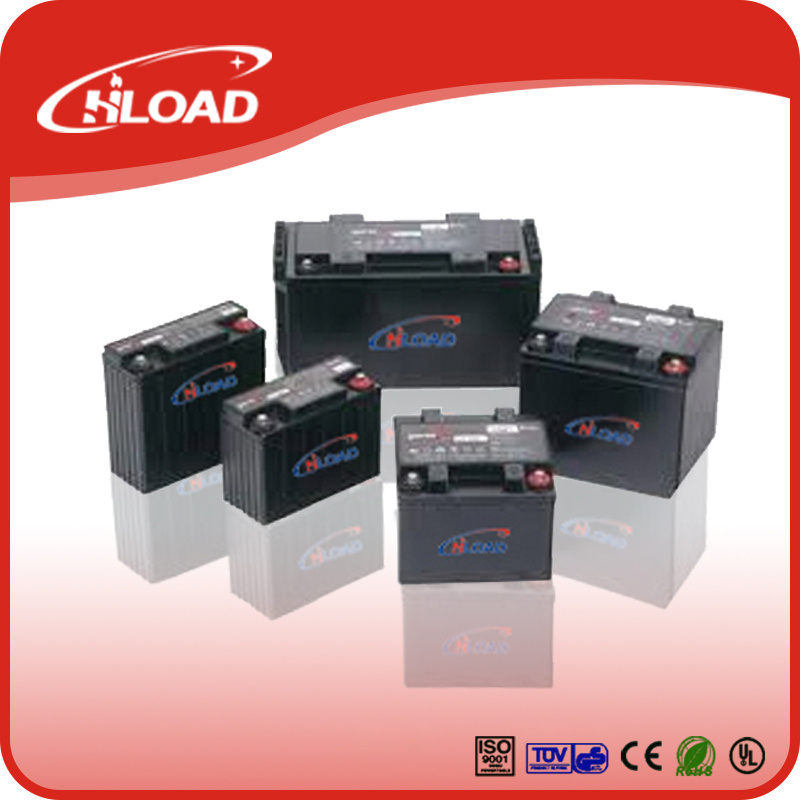

Gel Battery Long Cycle Life Battery for Solar Power System
Model: CE approve Sealed lead acid Battery for EPS
Size: 407*174*240mm
Time of delivery: 10-15days
Warranty: 3 years
Life: 7-8years.
Brand: Hiload
Certificate: CE, ISO, SGS. UL
OEM is available.
Product Description
1. UPS/Lead Acid Battery. Our company Pattern battery are professional supplier for car lead acid storage battery, including car battery and UPS batteries. We have almost the whole range of car battery products including dry charged battery and maintenance free battery with JIS and DIN standard.
2. Products Certification:
ISO9001: 2000, ISO14001, CE, SONCAP etc.
3. Packaging & Delivery Packaging Detail
Package: Color carton boxes
Container Loading: One Battery One Carton Packed with Pallet in 20ft
Loose loading. Load the battery one by one, more quantity and save container space.
4. Main materials of Products.
We use new plastic PP for battery containers which is stronger and heatproof features.
Plates: Electrolytic Purity lead 99.994%-99.996%, alloy of low antimony and alloy of high calcium are used.
Use American standard PE separators, Purity acid, high quality chemistry materials with high quality administer, good technology, scientific design for our products
5. Advantage of our battery.
Enveloped Separator for low electric resistance Reliable starting power
Special Tissue for improvement of durability
Safety and reliability due to restraint to an inflow of outside sparks
Ultramicro fiber & Special tissue to increase durability of plate by reducing aging rate of active material.
Reliable starting power
Excellent electrical performance (Minimum-self discharge)
6. We promise our customer
Satisfied quality with Best prices
On time delivery 15-25 days
OEM services available
Best suggestions about the market
Typical Applications:
1. Tele-communication central station (wired or cellular)
2. Power system communication, military communication, etc.
3. Network communication including: Data transmission, television signal transmission, etc.
4. Uninterruptable Power System (UPS- for Telecom)Battery general features
| Model No. | Voltage | Capacity | size(mm) | Weight | Packing |
| (V) | (Ah) | L | W | H | T.H. | (kg) | (PCS/CTN) |
| 2V 4.5Ah | 2 | 4.5 |
|
|
|
| 0.28 | 50 |
| 4V 0.5Ah | 4 | 0.5 |
|
|
|
| 0.07 | 200 |
| 4V 3.5Ah | 4 | 3.5 | 90 | 34 |
| 59 | 0.45 | 30 |
| 4V 4.5Ah | 4 | 4.5 | 48 | 52 |
| 94 | 0.55 | 30 |
| 3FM1.2 | 6 | 1.2 | 97 | 24 | 51 | 55 | 0.3 | 60 |
| 3FM2.8 | 6 | 2.8 | 66 | 34 | 96 | 101 | 0.62 | 30 |
| 3FM2.8 | 6 | 2.8 | 70 | 47 | 100 | 104 | 0.84 | 30 |
| 3FM3.2 | 6 | 3 | 134 | 34 | 60 | 64 | 0.65 | 20 |
| 3FM4I | 6 | 4 | 70 | 47 | 100 | 104 | 0.69 | 20 |
| 3FM4 | 6 | 4.5 | 0.72 | 20 |
| 3FM4II | 6 | 4.5 | 0.78 | 20 |
| 3FM4III | 6 | 5.5 | 0.82 | 20 |
| 3FM4 | 6 | 5 | 67 | 67 | 116 |
| 0.84 | 20 |
| 3FM7.0 | 6 | 7 | 151 | 34 | 96 | 100 | 1.2 | 20 |
| 3FM9 | 6 | 9 | 98 | 56 |
| 118 | 1.55 | 10 |
| 3FM12 | 6 | 12 | 151 | 50 |
| 100 | 1.8 | 10 |
| 3FM12 | 6 | 12 | 151 | 50 |
| 100 | 1.8 | 10 |
| 3FM14 | 6 | 14 | 108 | 70 |
| 140 | 2.3 | 8 |
| 3FM150 | 6V | 150 |
|
|
|
|
| 1 |
| 3FM200 | 6V | 200 |
|
|
|
|
| 1 |
| 6V | 225 |
|
|
|
|
| 1 |
| 6FM0.8 | 12 | 0.8 |
|
|
|
|
|
|
| 6FM1.3 | 12 | 1.3 | 97 | 43 | 51 | 55 | 0.6 | 12 |
| 12V2Ah | 12 | 2 | 70 | 47 | 100 | 104 | 0.75 | 20 |
| 12V2.2Ah | 12 | 2.2 | 70 | 47 | 100 | 104 | 0.83 | 20 |
| 6FM2.2 | 12 | 2.2 | 179 | 35 | 61 | 65 | 1 | 10 |
| 6FM3.2 | 12 | 3.2 | 134 | 67 | 60 | 64 | 1.3 | 10 |
| 6FM4.0I | 12 | 3.6 | 90 | 70 | 103 | 107 | 1.35 | 12 |
| 6FM4.0II | 12 | 4.5 | 1.5 | 12 |
| 6FM4.0III | 12 | 5.2 | 1.7 | 12 |
| 6FM5 | 12 | 5 | 151 | 56 | 93 | 98 | 1.6 | 10 |
| 6FM7 (I) | 12 | 6.3 | 151 | 65 | 95 | 100 | 1.95 | 810 |
| 6FM7 (II) | 12 | 7 | 151 | 65 | 95 | 100 | 2.1 | 810 |
| 12 | 7.2 | 151 | 65 | 95 | 100 | 2.2 | 810 |
| 6FM7 (III) | 12 | 7.5 |
|
|
|
| 2.3 | 8/10 |
| 6FM7 (IV) | 8.5 | 151 | 65 | 95 | 100 | 2.5 | 8/10 |
| 6FM9 | 12 | 9 |
|
|
|
| 2.68 |
|
| 6FM12(I) | 12 | 12 | 151 | 98 | 99 | 103 | 3.7 | 6 |
| 6FM12(II) | 12 | 14 | 4.2 | 4 |
| 6FM15 | 12 | 15 | 200 | 77 | 123 | 123 | 4.4 | 4 |
| 6FM17 | 12 | 17 | 181 | 77 | 167 | 167 | 5.4 | 4 |
| 6FM18 | 12 | 18 | 181 | 77 | 167 | 167 | 5.55 | 4 |
| 6FM20A | 12 | 20 | 181 | 77 | 167 | 167 | 6 | 3 |
| 6FM20 | 12 | 23 | 181 | 77 | 167 | 167 | 6.5 | 3 |
| 6FM26 | 12 | 26 | 175 | 166 | 125 | 125 | 8 | 2 |
| 6FM28 | 12 | 28 | 166 | 175 | 125 | 125 | 9 | 2 |
| 6FM35 | 12 | 35 | 196 | 131 | 155 | 170 | 11 | 1 |
| 6FM40 | 12 | 40 | 198 | 166 | 170 | 170 | 13.3 | 1 |
| 6FM55 | 12 | 55 | 230 | 138 | 208 | 229 | 17.5 | 1 |
| 6FM65 | 12 | 65 | 350 | 166 | 174 | 174 | 20 | 1 |
| 6FM80 | 12 | 80 | 350 | 167 | 179 | 186 | 24.8 | 1 |
| 6FM100 | 12 | 100 | 330 | 174 | 214 | 224 | 29 | 1 |
| 6FM120 | 12 | 120 | 330 | 174 | 214 | 224 | 30 | 1 |
| 6FM120 | 12 | 120 | 330 | 174 | 214 | 224 | 34.8 | 1 |
| 6FM120 | 12 | 120 | 407 | 174 | 209 | 224 | 38 | 1 |
| 6FM150 | 12 | 150 | 485 | 172 | 240 | 240 | 44.6 | 1 |
| 6FM150 | 12 | 150 | 485 | 172 | 240 | 240 | 38 | 1 |
| 6FM180 | 12 | 180 | 500 | 207 | 211 | 240 | 56 | 1 |
| 6FM180 | 12 | 180 | 500 | 207 | 211 | 240 | 45.5 | 1 |
| 6FM200 | 12 | 200 | 522 | 238 | 218 | 238 | 60 | 1 |
| 6FM200 | 12 | 200 | 522 | 238 | 218 | 238 | 56 | 1 |
| 6FM250 | 12 | 250 |
|
|
|
| 74 | 1 |
