Product Specifications
| Prod Model: |
GenoSens 1860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

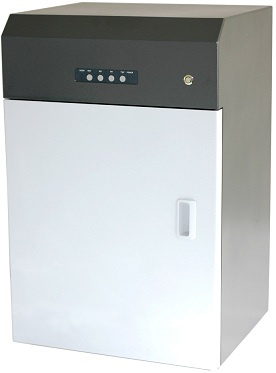

GenoSens 1860 Gel Documentation and Analysis System is designed for DNA detection and protein gel visualization. It adopts a high resolution and sensitive CCD-Camera, which enables the instrument to capture weak signals at extremely low illumination condition.
GenoSens 1860
Gel documentation and analysis system
Configurations
1. Darkroom
1.1 Size: 440 * 400 * 720mm
1.2 Structure: Microprocessor-controlled
metal dark room
1.3 Power Supply: 110V or 220V/50-60Hz
2. Digital CCD Camera
2.1 CCD sensor size: 6.4x4.8mm
2.2 Pixel size: 4.65x4.65um.
2.3 Resolution:1.4Megapixel,1392x1040
2.4 Pixel density: 16 Bit
2.5 Interface: USB 2.0
3. Lens
Motorized zoom lens
4. Auxiliary Light Source
4.1 LED white light * 2
4.2UV-Transilluminator: Filter size21cm*26cm, Wavelength302nm
5. Filter
590nm multi-layer coating filter
6. Image acquisition and analysis software
Clinx Science Instruments Co., Ltd is a professional manufactuer in bioimaging systems in China, developing all the software and hardware on our own. Our products include Gel documentation and analysis system, colony counter system, Fluorescence/chemiluminescence system and UV instruments. Meanwhile, we also provide OEM/ODM servive. Providing excellent products and service is always our goal.
