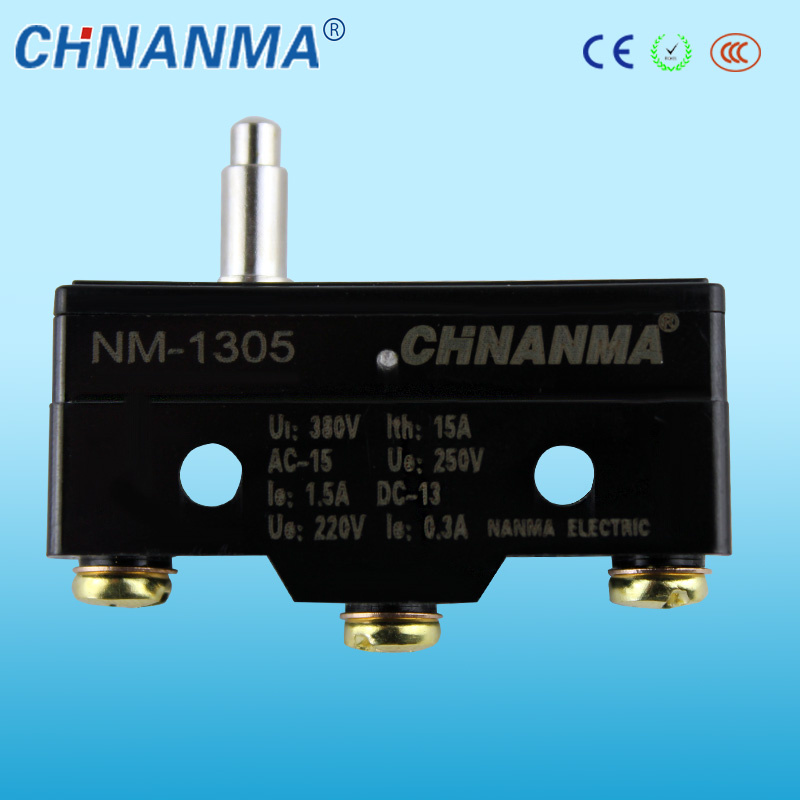

General Purpose Micro Switch

Name: General Purpose Micro Switch
Brand: China-Manufacturer-Directory.com
SKU: 753952585
Availability: InStock
Rating: 4.5 (64 reviews)

Supplier:	Yueqing Chnanma Electrical Co., Ltd.
Price:	US $ 0.5-0.54/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	NM-1305
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	22 to 58g
Max. Voltage:	AC250
IP:	20
Operating Temperature:	25 °c to +80 °c
Max. Current:	15
Pressing Type:	Spring Roller
Protection:	Dust-Proof
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Breaking Capacity:	DC
Brand:	Chnanma

Product Description

1. Switch Feature: Part NO: NM-1308

Max Current AND Voltage: 5A AC250V /15A AC250V/25A AC250V

Contact : 1NO+1NC

Tip material: Silver tip

Contact material: Brass

Level material: stainless steel top roller plunger

Ambient operating temperature: 25°C to 80°C (with no icing)

Ambient operating humidity: 35% to 85%RH

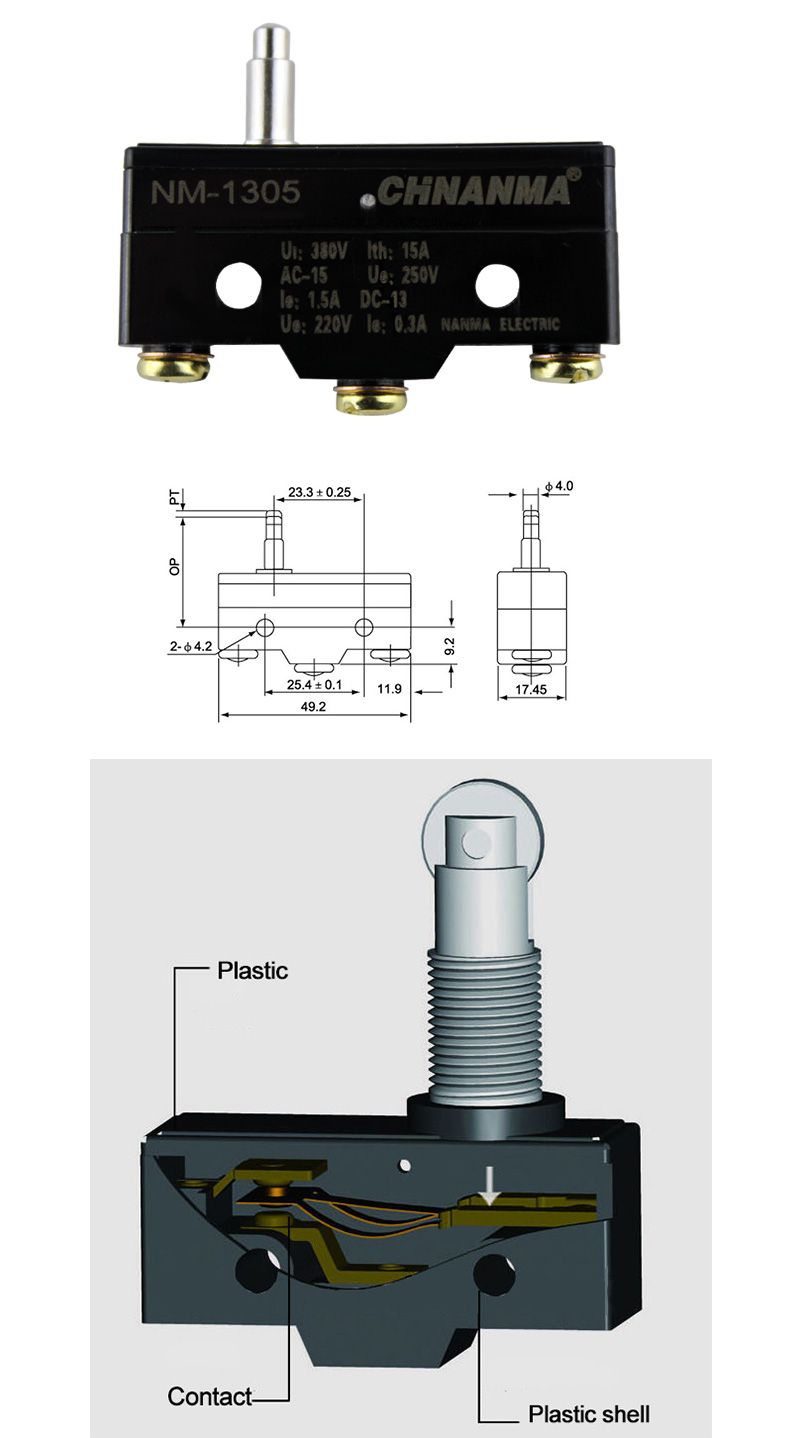

2.Product display&drawing show

Rated voltage	Non-inductive load				Inductive load
	Resistive load		lamp load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	15	15	15	15	5	2.5	Max 30	Max 15
250 VAC	15	15	15	15	3	1.5
500 VAC	3	3	2.5	2.5	1.5	0.75
8 VDC	15	15	15	15	5	5
14 VDC	15	15	1	1	5	5
30 VDC	6(2)	6	5	5	5	5
125 VDC	0.4	0.4	0.05	0.05	0.05	0.05
250 VDC	0.2	0.2	0.03	0.03	0.03	0.03

Notes:

1. Inductive load has a power factor of 0.4min. (AC) and a time constant or

7msec (DC).

2. Lamp load has an inrush current of 10 times the steady-state current,

while motor load has an inrush current or 6 times the steady-state current.
3.Characteristics

Operating speed	0.01mm to 1m/sec
Operating	Mechanically: 240 operations/min.
frequency	Electrically: 20 operations/min.
Contact resistance	15mΩmax. (initial)
Insulation	100MΩmin. (at 500VDC)
resistance	100MΩmin. (at 500VDC)
Dielectric strength	1000VAC, 50/60Hz for 1 minute between
	non-continuous terminals
	2000VAC, 50/60Hz for 1 minute between
	current-carrying part and ground
Vibration	Mechanical durability: 10 to 55Hz
Vibration	1.5mm double amplitude
Shock	Mechanical durability:
	Approx. 1,000m/sec2 (approx. 100G's)
	Malfunction durability:
	Approx. 300m/sec2 (approx. 30G's)
Ambient operating	General purpose type: -25°to +80°C
temperature	Sealed type: -15 to 80°C
Humidity	General purpose type: 85%RH max.
Humidity	Sealed type: 95%RH
Service life	Mechanically: 20,000,000 operations min
Service life	Electrically: 500,000 operations min.
Weight	Approx. 22 to 58g

4.Definitions of operating characteristics

OF: Operating Force	RF:Releasing Force
TF: Total Force	FP:Free Position
OP: Operating Position	RP:Releasing Position
TTP: Total Travel Position	PT:Pretravel
OT: Overtravel	MD:Movement Differential
TT:Total Travel

Model	NM-1305
OF Max	350g
RF Min	114g
PT Max	0.4mm
OT Min	1.6mm
MD Max	0.05mm
EP Max
OP mm	28.2±0.5
