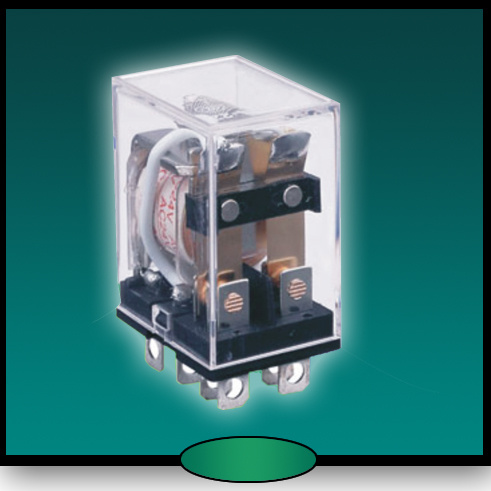

Main feature:
1. Contact parameter:
Contact resistance: (1Z, 1H), (2Z, 2H), 3Z, 4Z
Contact resistance: ≤ 50ohm (1A 24VDC)
Contact material: Silver alloy
Contact overload: 1Z: 15A 220VAC/28VDC
2Z, 3Z, 4Z: 10A 220VAC/28VDC
2. Performance parameter:
Insulation resistance: 100ohm 500VDC
Dielectric strength: Between coil and contact 1500VAC/1min
Among breaking contact 1000VAC/1min
Between contact and contact 1500VAC/1min
Operate time: Sucking time ≤ 25ms
Release time≤ 25ms
Terminal type: Printing board leading out end
3. Coil parameter:
Rated coil power: 1Z, 2Z: 0.9W 1.2VA
3Z: 1.4W, 2.5VA
4Z: 1.5W, 3.2VA
Established in March 1994, Minyang Group Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of Power Protectors, HVAC Control Systems, Enclosure Din Rail Thermostats, Hygrostats, PTC Heaters, Fan Heaters & Silver Points/Contacts.
We are located near the world famous geology park (Yandang mountain), facing the beautiful and rich east sea coast (China Electric Capital - Liushi). Our company is a national and non-regional large enterprise approved by the national industry and commerce headquarters, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. Covering an area of 53, 000 square meters, we now have over 1, 000 employees and an annual sales figure that exceeds USD50, 000, 000. We are currently exporting 42% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001, CE and CB certifications. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Europe, America, Africa and Asian Districts.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
