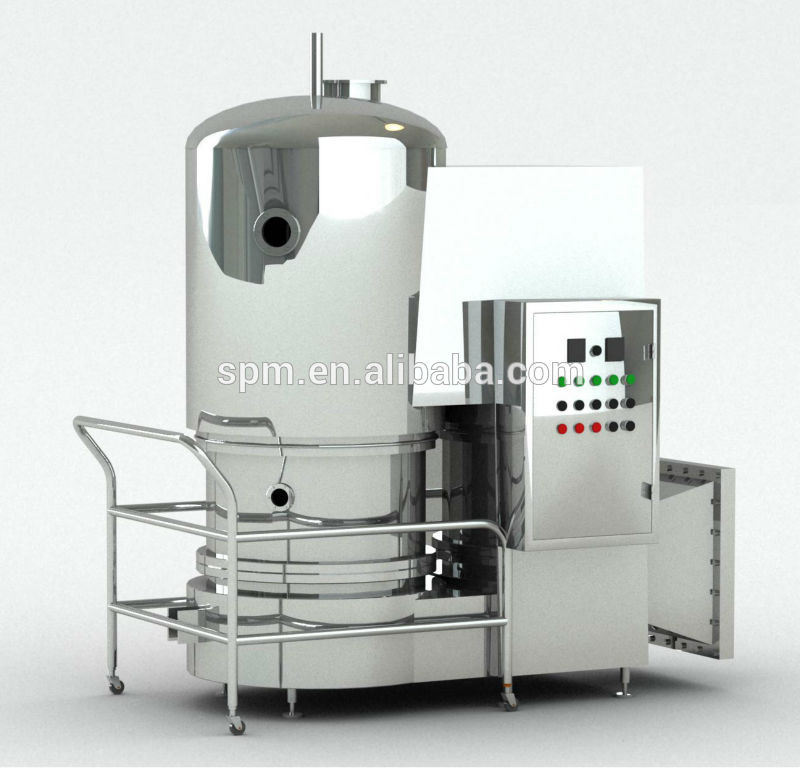

Gfg Series High Efficiency Fluidized Dryer

Name: Gfg Series High Efficiency Fluidized Dryer
Brand: china-manufacturer-directory.com
SKU: 753758375
Availability: InStock
Rating: 4.6 (80 reviews)

Supplier:	Shanghai Pharmaceutical Machinery Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GFG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	380V/220V
Warranty:	One Year
Structure:	Fluidized Bed Drier
Heating Mode:	Convective
Operational Method:	Continuous
Operation Pressure:	Atmospheric Dryer
Movement Way:	Fixed

Product Description

Specifications

Meet GMP
Easy to operation
Contact parts SS304 or SS316L
PLC touch screen cntrol

Application

Drying raw material of damp granule and powder in pharmaceutical industry, foodstuff industry, feed

industry, chemical industry and so on Big granule, little block, stickiness granule row material; Raw

material whose volume is changed after dried.

tem			Type
Raw material		kg	60		100	120		150	200		300		500
Fan	Air volume	m3/h	2361		3488	4000		4901	6032		7800		10800
	Air pressure	mmH2O	594		533	533		679	787		950		950
	Power	kw	7.5		11	15		18.5	22		30		45
Stirring power		kw	0.55		0.55	0.55		0.55	0.55		0.75		0.75
Stirring speed		rpm	11
Consume of steam		kg/h	141		170	170		240		282	366		451
Time of operation		min	15-30
Height of main machine	Square	mm	2750	2850		2850	2900		3100		3300	3650
	Round	mm	2700	2900		2900	2900		3100		3600	3850

Features

The structure of fluid-bed dryer provides dead angle.

There is stirring in the bed. It provides the gather of damp raw material and making the flow channel during drying.

It is adopted bag filter on the top of bed. Filter bag material is anti static-electric special fiber; it is safe in operation.

It is adopted tipping discharger. It is convenient in operation.

It is in conformity with the requirements of GMP standard.

The equipment can be made in accordance with the requirements of automatic feeding and discharging.

We are professional pharmaceutical machinery manufacturer and exporter in China. Our main products are tablet press, blister packing machine, bag packing machine, colloid mill, mixer, capsule filling machine, coater, dryer, granulator, labeling machine and etc. All tasks from casting to metal machining, and general assembly are accomplished by itself. ZP-37 tablet press, DPP25 Blister Packing Machine and Fully Automatic Bottling and Packing line and so on all meet with GMP standard, which are on behalf of tablet press product developing direction and win the certificates for Shanghai excellent science technology products.
With wonderful reputation, our products have been sold through out China and have exported to many foreign countries and regions around the world such as Australia, USA, Canada, Malysia, Bulgaria, Russia and etc.
Welcome to contact us, all enquiries from all customers both at home and abroad will be highly appreciated by us and we are sure that you will get a satisfactory answer once we get your enquiry.
