Product Specifications
| Prod Model: |
LSY100-82-11C(P) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LV: |
Three Phase |
| Indoor: |
Ring Type |
| Open Type Current Transformer: |
Gis Type LV |
| Three Phase Cable: |
Ratio150~600/5 |
| 25 To 50 Oc Ambient Temperature: |
Signal Acquisition |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Description:

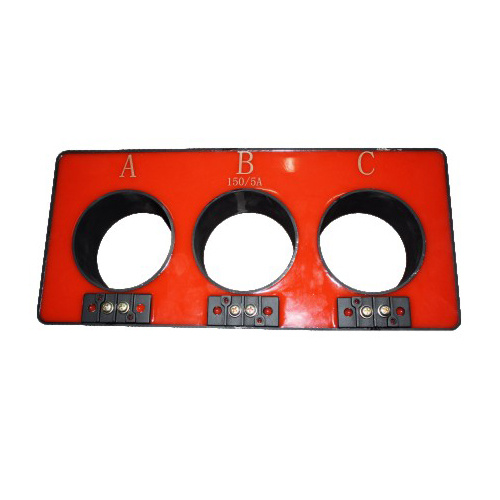

LSY100-Φ82-11C(P) open type current transformer(CT) core is composed of high permeability semicircle circular silicon steel sheet, has the high accuracy of measurement.Used in power system is rated voltage 10kv cable, for current measurement, signal acquisition and relay protection.
Technical Data:
1. 25 to 50 ºC ambient temperature
2. the installation place: indoor
LMZC-11 Current Transformer
The secondary windings are full-enclosed in the flame retardant plastic shells, primary bushing or cable can pass through the inner hole, bottom has installation inserts for fixation. It is simple and shortcut, is suitable for measuring current, signal collection and protective relaying in the power system with the rated voltage 11kV of bushing or cable ect.
Technical Data
1. Rated secondary current 5A or 1A
2. Power frequency withstand voltage: 3kV
3. Rated frequency 50/60Hz
4. Installation site: Indoor
Specification
| Model | LMZC1-11H70C | LMZC1-11H70P | LMZC1-11H70CP |
| Purpose | Measuring current transformer | Protective current transformer | Double winding current transformer |
| Rated Primary current | Accuracy class and rated burden (VA)
COS=0.8 |
| 0.5 | 1 | 10P10 | 0.5 | 10P10 |
| 30 |
|
1 |
|
|
|
| 50 | 1 | 2.5 |
|
|
|
| 75 | 2.5 | 5 | 0.5 |
0.5 | 0.5 |
| 100 | 5 | 7.5 | 0.5 | 0.5 | 0.5 |
| 200 | 5 | 7.5 | 0.5 | 0.5 | 0.5 |
| 300 | 5 | 7.5 | 1 | 0.5 | 0.5 |
Note: Upon requset we are glad to offer transformers according to other technical specs.
Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA
Offering a Wide Range of Products
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.
Passed CE, TUV, ISO and RoHS standards
We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
