Product Specifications
Product Description

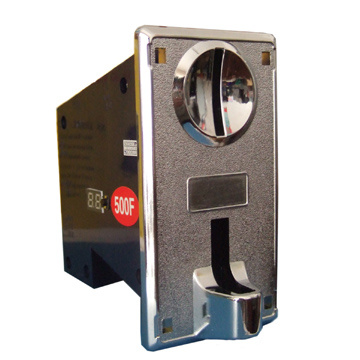

An intelligent multi-Coin acceptor can memorize and recognize 3 different type coins with different signals from 1 pulse to 99 pulses. The product include software guard system, and this alarm system can prevent opportunistic behaviors. It it not only good for your Amusement Machine but also Vending Machines.
Coin Acceptor Specification:
Net weight: 0.375kgs/each
Single chip auto recognize system
Signal output in pulse
Apply to coin diameter: 18mm-29mm
Apply to coin thickness: 1.2mm-3mm
Work voltage: DC12V (+/- 20%)
Current in 50ma
CPU system identify the coin's material, thickness and diameter
Include software guard system
Can connect the counter
TIME SWITCH can be set to fast-25ms, medium-45ms and slow-65ms
How To Set Up the Coin Acceptor With The Game Machine:
Step 1: Operate with the game machine's standard mode Normal Open
Step 2: Switch to the correct speed(pulse) of coin machine: FAST 25ms, MEDIUM 45ms and SLOW 65ms
Step 3: Connecting the +12V DC and Ground wiring for the coin Acceptor.
Step 4: Arrange the token sample that you want the Coin acceptor to accept
Step 5: Set the switch from "Start" to "Set" position, the LED light will show "00", press the switch which for adjusting the coin's value, to adjust the coin value when the coin programming. "00-99" means how many times of the out pulse signal will be sent when the programmed coin was deposited, return the switch from "Set" to "Start", it is finished
Step 6: Set the switch from "NOM" to "MGN" position, then turn the switch from "Start" to "Set" position, the LED show default "P1", "P1-P9" means a output signal needs how many programmed coins to be deposited like "P1, P2, P3...P9"
Step 7: Prepare the needed sample coins.
Step 8: Insert 10PCS coins in turn to set the coin (time interval 0.3 seconds)
Step 9: Turn the coin set switch to "Start" and finished the setting.
