Product Specifications
| Prod Model: |
RFC-C 24-24-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing: |
Glass Bottle Carbonated Drink Filling Line |
| Capacity: |
1,000-24,000bottles/Hour |
| Delivery: |
30days After Payment |
| Material: |
SUS304/316 |
| Certification: |
CE, ISO, SGS |
| Warranty: |
1year |
| Type: |
Weighing-type Filling Machine |
| Automatic Grade: |
Fully Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Dosing Device: |
Rotor |
| Filling Principle: |
Atmospheric Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description
Blissun's RFC-H series filling machines are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts the pressure & rotative filling style. The rinsing system, capping system rotor assemblies are identical to the non-carbonated beverage filling machine (RFC Series), however there are some additional smart features provided along with specially designed valves, designed specifically for the purpose.

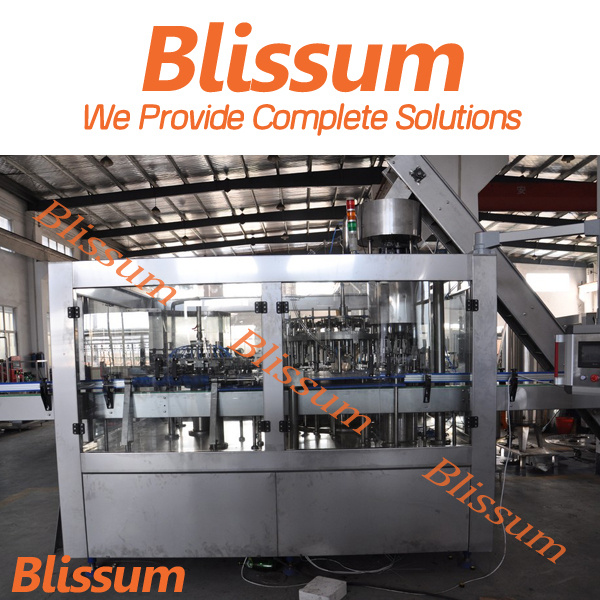

Features of automatic 3 in 1 glass bottle juice filling machine:
1, With advanced micro-negative pressure filling technology, the filling liquid can be filled into the bottle quickly, steady and accurately.
2, Machine has the beverage feedback system. In the filling process, the air can be fed back separately. Without air contacting, the beverage can be kept away of pollution.
3, In the filling processing, the filling temperature will be controlled under 95 centigrade.
4, The suspending bottle neck clamping design makes the bottle stable during the high speed running. By changing some parts, the whole unit can suitable for different size and shape bottle.
5, The new designing bottle neck locking parts can reduce the pollution of the bottle. The water spray nozzles can guarantee the complete washing of the interior of the bottle.
Technical Parameter of automatic 3 in 1 glass bottle juice filling machine:
Model RFC-H series | 14-12-5 | 16-16-5 | 24248 | 323210 | 404012 |
| Production capacity(bottle/hour) (500ml) | 2000-3000 | 4000-5000 | 6000-8000 | 8000-10,000 | 12,000 |
| Suitable bottle height (mm) | H=150-310 φ=50-110 (330~2,000ml) |
| Spraying pressure (MPa) | 0.25-0.3 | 0.25-0.3 | 0.25-0.3 | 0.25-0.3 | 0.25-0.3 |
| Total Power (kw) | 2.2+0.37 | 2.2+0.37 | 3+0.45 | 5.5 | 7.5 |
| Overall dimension(L×W×H) (mm) | 2400×1750×2500 | 2500×1860×2550 | 3100×2100×2550 | 3800×3000×2850 | 4650×3300×3400 |
| Weight (kg) | 2600 | 3500 | 4650 | 6800 | 8500 |
Established in 2002, Blissum is one of the professional & reliable China manufacturers & provide of liquid & semi-liquid filling machinery, sealing capping machinery & other liquid packaging machinery with reliable machine quality & after sale service!
Our extensive experience of liquid & semi-liquid filling & packaging and container handling enables us to offer complete solutions to designs, manufactures, supplies, installs, maintains, troubleshoots, and upgrades plants for complete processing and packaging lines with special emphasis on bottling in glass, PET, Jar, can, and kinds of container
With a flexible approach, we are able to provide the right solutions for a diverse customer base, from small start up companies through to major national companies. Our many satisfied customers come from a very wide range of industries, including toiletries, cosmetics, pharmaceuticals, food, drink, household products and chemicals.
Blissum with ethos focus on after sale customer service, strive to achieve excellence, from our initial response to your enquiry to our after sales support and spares service.
