Product Specifications
Prod Model: |
Washing Filling Capping Line 3-in-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
SUS304/316 |
Certification: |
ISO9001:2008 |
Composition: |
Washing Filling Capping Machine |
Processing Material: |
Metal |
Product Description

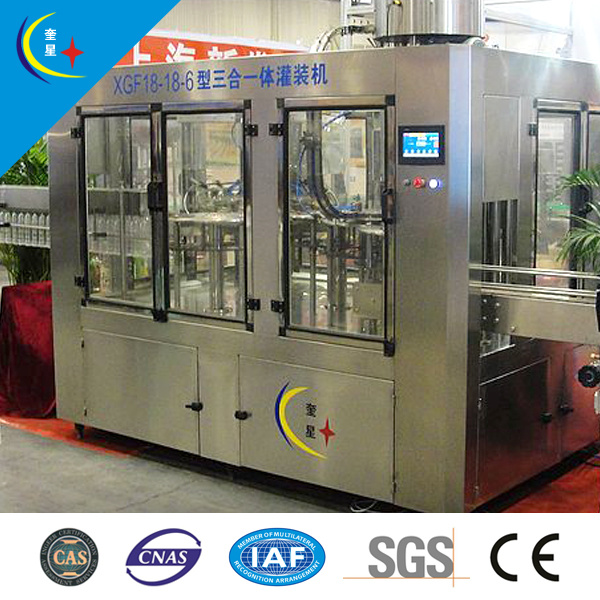

Glass bottle beverage washing filling capping line 3 in 1 unit machine
Products Introduction
The series of machine integrate washing, filling and capping into one unit, can be used for different kinds of fruit juices, tea drink production. With only a few parts changed, the machine can also be used for mineral water filling. The advanced micro-negative pressure can be fed back separately, has no contact with beverage reduce the second time pollution and oxidation. This machine can meet all the technical requirements for hot drink filling below 95. All filling vales and beverage conducting pipes can be cleaned, and the automatic washing interface is designed in the machine, Before cap pressing, the RO water washing device is used to wash the bottle mouth to keep mould away from the bottle mouth. Magnetic torque is used for screw capping, power of screw capping can be adjusted stepless. The most advanced PLC control system, frequency changing the technologies are used in this machine. It has the automatic control system for capping, and the filling temperature tested materials automatic, If too high temperature alarming, low temperature and automatic backflow, no bottle, no capping, stop short of capping, etc.
model |
DCGF12-12-6 |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-10 |
DCGF40-40-12 |
production capacity
(500ml bph) |
2000-3000 |
3000-5000 |
5000-8000 |
7000-10000 |
10000-15000 |
filling precision |
<+/-5mm (liquid level) |
filling pressure(Mpa) |
<0.4 |
PET bottle specification(mm) |
bottle diameter: 50-100; height: 150-310 |
suitable cap shape |
plastic screw cap |
total power(KW) |
4.4 |
5.2 |
6.2 |
6.2 |
7.5 |
weight(kg) |
2500 |
3500 |
4500 |
6000 |
7200 |
overall dimension(mm) |
2250*1650*2250 |
2600*1965*2250 |
2980*2200*2250 |
3880*2200*2250 |
4000*2250*2500 |
We specialized with beverage filling machine, labeling machine and other related products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.
