Glass Bottle Drying Machine (YXT-FD2)

Product Specifications

Prod Model:	YXT-FD2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Material:	SUS304/316
Certification:	ISO9001:2008
Operational Method:	Continuous
Operation Pressure:	Atmospheric Dryer
Movement Way:	Fixed
Structure:	Air Flow and Heating Drying

Product Description

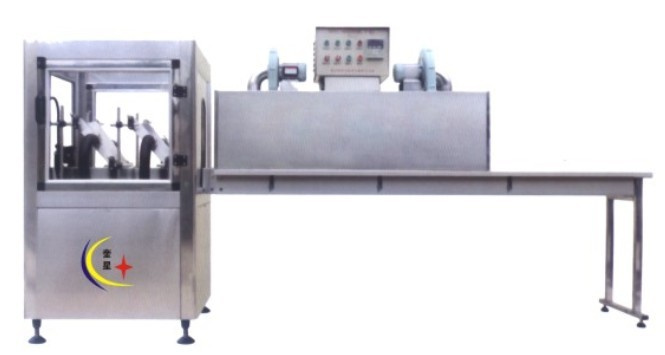

YXT-FD2 Glass bottle drying machine

Functions

L The equipment adopts the international advanced air knife technology.
L The machine performance stability, low temperature, high visibility, good drying effect.
L The machine works in the conveyor. The water on the bottle can be dried through air heater, then the air heater adopts air circulation mode, the hot air produced by the electric heating tube suctied by the fan, and then to be used in a drying chamber circulation. The drying chamber adopts a thickened heat insulation layer and composite insulation materials to ensure the drying temperature and reduce the energy consumption of hot air temperature through the temperature control instrument for adjusting device.
L Air knife dryer has the advantages of compact structure, beautiful appearance, the air knife can be freely rotated, the opening size and air volume can be adjusted.

Work  efficiency	0-60  bottles  per  minute
installed  capacity	11kw
Power  supply	380V  50HZ
Applied  bottle  height	50-150mm
Applied  bottleneck	50-100mm
Dimension	(l*W*H): 2000*800*1600mm
