Product Specifications
| Prod Model: |
WL-CNC6033 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Glass Cutting Machine |
| Certification: |
CE |
| Control System: |
Industrial Computer |
Product Description

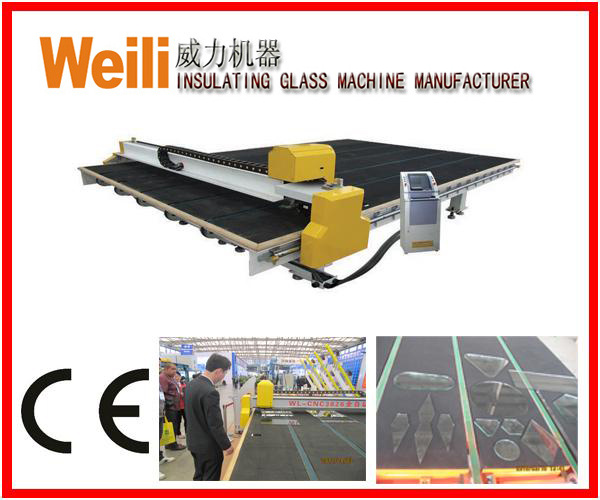

Glass machinery---CNC Glass Cutting Machine (WL-CNC-6033)
This automatic CNC-shaped glass cutting machine allows users to cut out any shape of glass with high precision. AUTO CAD designed graphs and figures, automatic cutting, with all the Cutting data fully computer controlled.
The operator can edit the glass size for cutting with computer. The computer can optimize the Cutting size and give out the data for processing, driven the machine to cut glass sheet automatically in high speed and high precision.
Features:
1. Imported servo motor, CNC controller, rack and rail, advanced control interface make
The machine easy to handle and features high cutting precision.
2. Double mechanical movement bridge system, automatically driving by motor.
3. Imported plastic table surface, bearing and rail are more reliable and endurable.
4. Air float cutting table make it easy loading and unloading glass sheet.
5. Buyer's special specifications are available.
6. Glass breaking machine and Glass loading machine are optional.
Technical Parameter:
|
Model |
CNC-1615 |
CNC-2621 |
CNC-3826 |
CNC-6033 |
|
Machine size |
2050*1500*1350 |
3100*2500*1350 |
4600*3250*1450 |
7000*4000*1350 |
|
total power |
2.75Kw |
3.9KW |
4.9KW |
8.9KW |
|
Gross weight |
1600 |
1800 |
2800 |
3500 |
|
max.size of glass |
1500*1250 |
2500*2000 |
3660*2440 |
6100*3400 |
|
min.size of glass |
100*100 |
100*100 |
100*100 |
100*100 |
|
thickness of glass |
3-19mm |
3-19mm |
3-19mm |
3-19mm |
|
processing speed |
120m/min |
120m/min |
120m/min |
120m/min |
|
precision |
± 0.2mm |
± 0.2mm |
±0.2mm |
±0.2mm |
Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industries. It is mainly specialized in producing door-window of energy and conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, America and Southeast Asia.
Jinan Weili Machine Co., Ltd is wildly accepted by customers from home and abroad.
New Century/ New Image/ New Weili.
Strong market competition consciousness.
Makes us always ahead of the advanced technology.
Honor acquirement, quality affirmation.
The most sincere service and the superior quality will offer to you.
Weili, in new image
Develop with you hand in hand to create the future.
Do business with whole heart, and treat others with great sincerity.
We regard honesty as the basis of the business, and sharing as the soul.
While we try our best to make each product perfect, We make efforts to become the giant of service. We respect the customers, understand them and communicate with them friendly. We regard the customers as our partner, and provide them with amazing service. To offer high-quality products and satisfying service is also to accomplish ourselves. We promise sincere service consent 100 years.
We believe when we deal in our products, we are dealing in trustworthy at the same time.
So be Weili, do business with whole heart, and treat others with great sincerity.
