Product Specifications
| Prod Model: |
HXM261P Glass Beveling Machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM, ODM: |
Available |
| Type: |
Glass Beveling Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description
High quality Glass Edging Machine/ Glass bevelling machine

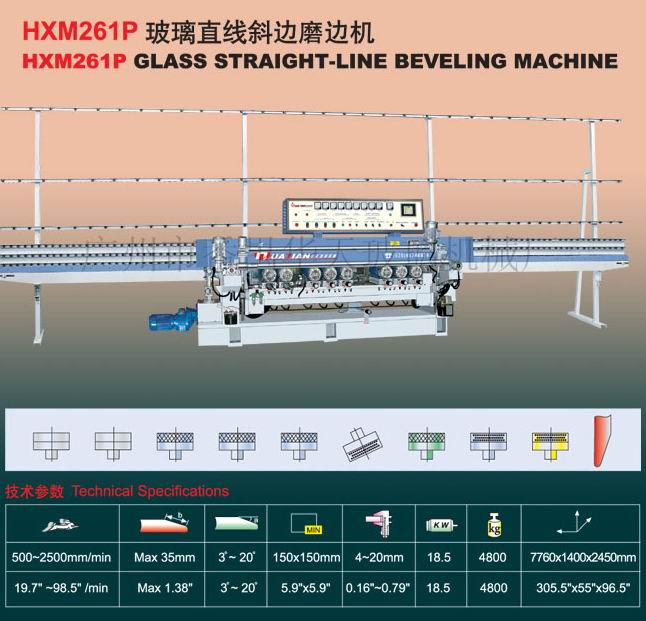

HXM261P Glass Straight-Line Beveling Machine
Feature: This glass edging machine is suitable for flat glass straight-line bevel grinding and polishing. Adjust speed with stepless regulator. The controlling system adopts PLC, it can accomplish
automatic or manual operation. Display glass processing thickness and length by LCD. Processed with three diamond wheels
for coarse grinding, one wheel for base modification, three wheels for refine grinding and two wheels for pneumatic polishing.
It specialty adopt beveling wheel which can whole progress and also can lifting integrally. It compare to traditional front beam
or back beam's lifting, it has characteristics of more pithiness structure, more stability, higher grinding precision.
| Technical Specifications |
| 1.The number of grinders | 9 |
| 2.Grinding speed | 500 ~ 2500mm/min |
| 3.Maximum beveling width | 35mm |
| 4.Range of bevel angle | 3°~ 20° |
| 5.Glass thickness | 4 ~ 20mm |
| 6.Size of processed glass | Max: 3000 x 3000mm Min: 150 x 150mm |
| 7.Power | 18.5KW |
| 8. Weight | 4800 KG |
| 9. Size | 7760 x 1400 x 2450mm |
Our Advantage:
1.One of the "China glass machinery top ten well-known brands" industry
2.Specializing in producing glass machinery for more than 20 years.
3.Many years of exporting experience.
4.Careful preparation for shipment, punctual delivery.
5.Have good reputation at home and abroad.
6.Do business with customers on the basis of equality and mutual benefit.
Guarantee & After-service:
1.Guarantee for 1yr.
2.Any time technical support by calling or video.
Certification & competition:.
1.The products have reached CE and SGS standard so that you may rest of safe using.
2.The products are economical for their reasonable factory price.Our aim is "Small profit, quick turnover."
Guangzhou Huatian Glass Machinery Co., Ltd, founded in 1996, plant area over 10, 000 square meters, specializes in manufacturing and developing glass machine. Our company has much production experience, able to independently design and manufacture products, constantly introducing new ideas, creating a series of good quality glass machine. Our products as below:
Glass machine, glass straight line edging machine, glass double edge machine, glass beveling machine, glass round edging machine, glass straight line miter machine with 45 degree changable, glass shape machine, glass washing machine, glass drilling machine, glass sandblasting machine, glass bending and fusing kiln,
Our company glass machine strictly implement ISO9001 international quality management system, products with European CE certificate. Our products glass machine are not only supplied to the domestic market, but also exported to more than 30 countries and regions, such as the Middle East, Southeast Asia, East and West Europe(Spain, Italy, Germany, Poland), Latin America...We have won high approval and praise from customers at home and abroad.
