Product Specifications
| Prod Model: |
DJT04-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

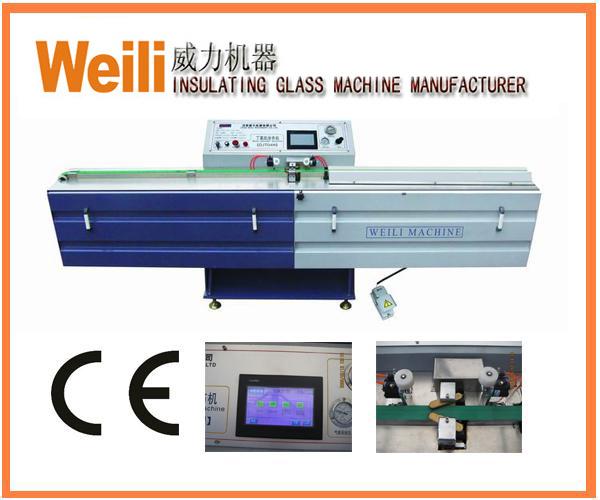

Butyl extruder machine--DJT04H
Main features:
1. The machine is more stable and energy-saving with the adoption of Germany TOX technology.
2. Main electrical elements (invertr, PLC, contact screen and so on) all adopt the famous brands imported from abroad or domestic brand.
3. It is easier to operate with the 7 inch man-machine touch screen.
4. Heating time can be set up within 96 hours.
5. The distance between the glue nozzle can be adjusted from 6 to 20mm according to the width and the thickness of the alu-space-frame.
6. The height of the working table can be adjustable.
Technical Parameter:
Extrude glue pressure :
|
12-14 Mpa;
|
Power supply :
|
380V ;
|
Spread glue temperature :
|
100 -140 centigrade ;
|
Total power :
|
2.5Kw;
|
Air pressure :
|
0.5-0.8Mpa;
|
Adjustable range :
|
6 -20mm ;
|
Spread glue Speed :
|
22m /min;
|
External dimension:
|
3000x700x 1236mm ;
|
Total weight :
|
850kg .
|
Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industries. It is mainly specialized in producing door-window of energy and conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, America and Southeast Asia.
Jinan Weili Machine Co., Ltd is wildly accepted by customers from home and abroad.
New Century/ New Image/ New Weili.
Strong market competition consciousness.
Makes us always ahead of the advanced technology.
Honor acquirement, quality affirmation.
The most sincere service and the superior quality will offer to you.
Weili, in new image
Develop with you hand in hand to create the future.
Do business with whole heart, and treat others with great sincerity.
We regard honesty as the basis of the business, and sharing as the soul.
While we try our best to make each product perfect, We make efforts to become the giant of service. We respect the customers, understand them and communicate with them friendly. We regard the customers as our partner, and provide them with amazing service. To offer high-quality products and satisfying service is also to accomplish ourselves. We promise sincere service consent 100 years.
We believe when we deal in our products, we are dealing in trustworthy at the same time.
So be Weili, do business with whole heart, and treat others with great sincerity.
